CC1125RHBR IC RF TxRx + MCU General ISM < 1GHz 164MHz ~ 192MHz, 274MHz ~ 320MHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC1125RHBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| RF Family/Standard: | General ISM < 1GHz | Modulation: | 2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK |
|---|---|---|---|
| Frequency: | 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz | Data Rate (Max): | 200kbps |
| Power - Output: | 16dBm | Sensitivity: | -129dBm |
| Memory Size: | 4kB ROM, 256B RAM | Voltage - Supply: | 2V ~ 3.6V |
Product Description
CC1125RHBR IC RF TxRx + MCU General ISM < 1GHz 164MHz ~ 192MHz, 274MHz ~ 320MHz
Specifications of CC1125RHBR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | - |
| Modulation | 2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK |
| Frequency | 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz |
| Data Rate (Max) | 200kbps |
| Power - Output | 16dBm |
| Sensitivity | -129dBm |
| Memory Size | 4kB ROM, 256B RAM |
| Serial Interfaces | SPI |
| GPIO | 4 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 17mA ~ 27mA |
| Current - Transmitting | 26mA ~ 56mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

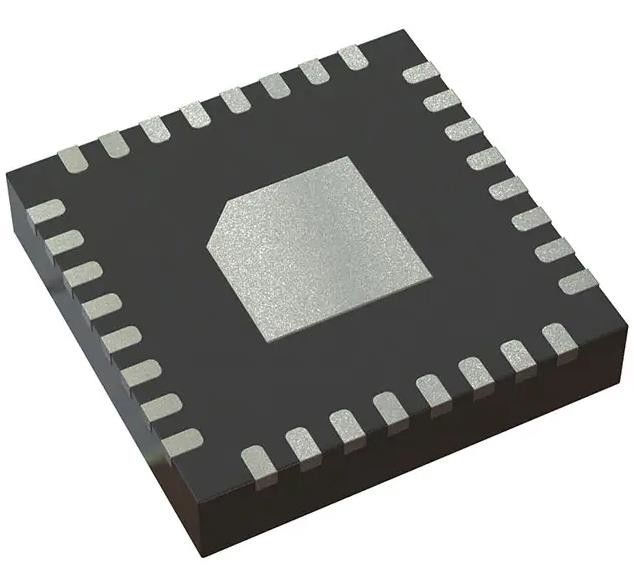

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | CC1125 |
Features of CC1125RHBR
* High-Performance, Single-Chip Transceiver
- Adjacent Channel Selectivity: 67 dB at6.25-kHz Offset
- Blocking Performance: 1 04 dB at 10 MHz
- Excellent Receiver Sensitivity
- 129 dBm at 300 bps
- 123 dBm at 1.2 kbps
- 110 dBm at 50 kbps
- Very Low Phase Noise: -115 dBc/Hz at10-kHz Offset
* Suitable for Systems Targeting ETSICategory 1
* Separate 128-Byte RX and TX FIFOs
* Support for Seamless Integration With the CC1190Device for Increased Range Giving up to 3-dBlmprovement in Sensitivity and up to +27-dBmOutput Power
* High Spectral Efficiency (9.6 kbps in 12.5-kHzChannel in Compliance With FCC NarrowbandingMandate)
Applications of CC1125RHBR
• Social Alarms
• IEEE 802.15.4g Systems
• Narrowband Ultra-Low-Power Wireless Systems
• Home and Building Automation With Channel Spacing Down to 4 kHz
• Wireless Alarm and Security Systems
• 169-, 315-, 433-, 868-, 915-, 920-, 950-MHz
• Industrial Monitoring and Control ISM/SRD Band Systems
• Wireless Healthcare Applications
• Wireless Metering and Wireless Smart Grid (AMR and AMI)
• Wireless Sensor Networks and Active RFID
• Private Mobile Radios
Environmental & Export Classifications of CC1125RHBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B |
| HTSUS | 8542.39.0001 |
