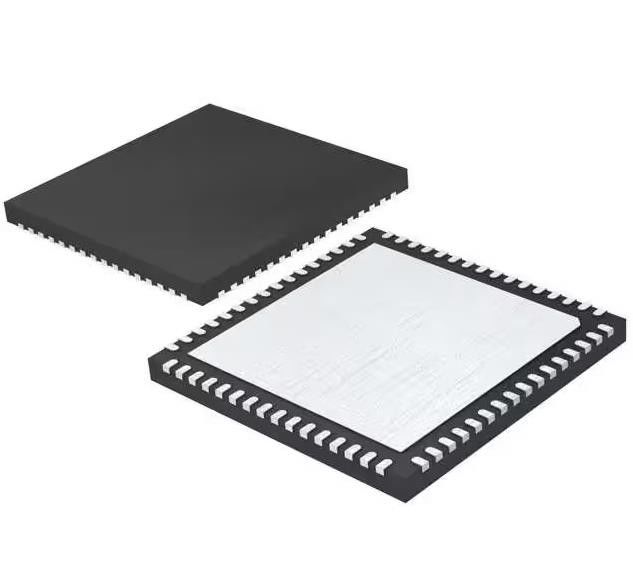

ADS42JB46IRGCR Bit Analog to Digital Converter Input 64-VQFN (9x9)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS42JB46IRGCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Active |
|---|---|---|---|
| Package / Case: | 64-VFQFN Exposed Pad | Supplier Device Package: | 64-VQFN (9x9) |
| Mounting Type: | Surface Mount | Base Product Number: | ADS42JB46 |
Product Description
ADS42JB46IRGCR Bit Analog to Digital Converter Input 64-VQFN (9x9)
Specifications of ADS42JB46IRGCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Mounting Type | Surface Mount |
| Base Product Number | ADS42JB46 |
Features of ADS42JB46IRGCR
* Dual-Channel ADCs
* 14-Bit Resolution
* Maximum Clock Rate: 160 MSPS
* JESD204B Serial Interface
- Subclass 0, 1, 2 Compliant
- Up to 3.125 Gbps
- Two- and Four-Lane Support
* Analog Input Buffer with High-lmpedance Input
* Flexible Input Clock Buffer:Divide-by-1, -2, and -4
* Differential Full-Scale Input: 2 Vpp and 2.5 Vpp(Register Programmable)
* Package: 9-mm x 9-mm QFN-64
* Power Dissipation: 679 mW/Ch
* Aperture Jitter: 85 fs rms
* Internal Dither
* Channel Isolation: 100 dB
Applications of ADS42JB46IRGCR
* Communication and Cable Infrastructure
* Multi-Carrier, Multimode Cellular Receivers
* Radar and Smart Antenna Arrays
* Broadband Wireless
* Test and Measurement Systems
* Software-Defined and Diversity Radios
* Microwave and Dual-Channel VQ Receivers
* Repeaters
* Power Amplifier Linearization
Environmental & Export Classifications of ADS42JB46IRGCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991C3 |
| HTSUS | 8542.39.0001 |
