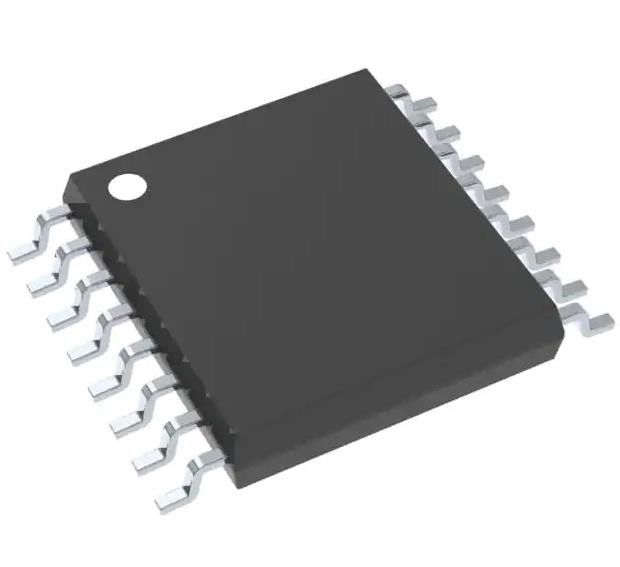

TSC2046IPWR Touchscreen Controller 4 Wire Resistive 12 b SPI Interface 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TSC2046IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Touchscreen: | 4 Wire Resistive | Resolution (Bits): | 12 B |
|---|---|---|---|
| Voltage Reference: | Internal | Voltage - Supply: | 2.2V ~ 5.25V |
| Current - Supply: | 780 µA | Data Interface: | SPI |
| Operating Temperature: | -40°C ~ 105°C | Mounting Type: | Surface Mount |
Product Description
TSC2046IPWR Touchscreen Controller 4 Wire Resistive 12 b SPI Interface 16-TSSOP
Specifications of TSC2046IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Touch Screen Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Touchscreen | 4 Wire Resistive |
| Resolution (Bits) | 12 b |
| Interface | SPI |
| Voltage Reference | Internal |
| Voltage - Supply | 2.2V ~ 5.25V |
| Current - Supply | 780 µA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | TSC2046 |
Features of TSC2046IPWR
SAME PINOUT AS ADS7846
2.2V TO 5.25V OPERATION
1.5V TO 5.25V DIGITAL I/O
INTERNAL 2.5V REFERENCE
DIRECT BATTERY MEASUREMENT (0V TO 6V)
ON-CHIP TEMPERATURE MEASUREMENT
TOUCH-PRESSURE MEASUREMENT
QSPI AND SPI 3-WIRE INTERFACE
AUTO POWER-DOWN
AVAILABLE IN TSSOP-16, QFN-16, AND VFBGA-48 PACKAGES
Applications of TSC2046IPWR
PERSONAL DIGITAL ASSISTANTS
PORTABLE INSTRUMENTS
POINT-OF-SALE TERMINALS
PAGERS
TOUCH SCREEN MONITORS
CELLULAR PHONES
Environmental & Export Classifications of TSC2046IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
