TSC2008TRGVRQ1 Touchscreen Controller 4 Wire Resistive 8 b, 12 b SPI Interface
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TSC2008TRGVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Touchscreen: | 4 Wire Resistive | Resolution (Bits): | 8 B, 12 B |
|---|---|---|---|
| Voltage Reference: | External | Voltage - Supply: | 1.2V ~ 3.6V |
| Output Type: | Voltage - Buffered | Data Interface: | SPI |
| Operating Temperature: | -40°C ~ 105°C | Mounting Type: | Surface Mount |
Product Description
TSC2008TRGVRQ1 Touchscreen Controller 4 Wire Resistive 8 b, 12 b SPI Interface
Specifications of TSC2008TRGVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Touch Screen Controllers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Touchscreen | 4 Wire Resistive |
| Resolution (Bits) | 8 b, 12 b |
| Interface | SPI |
| Voltage Reference | External |
| Voltage - Supply | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |

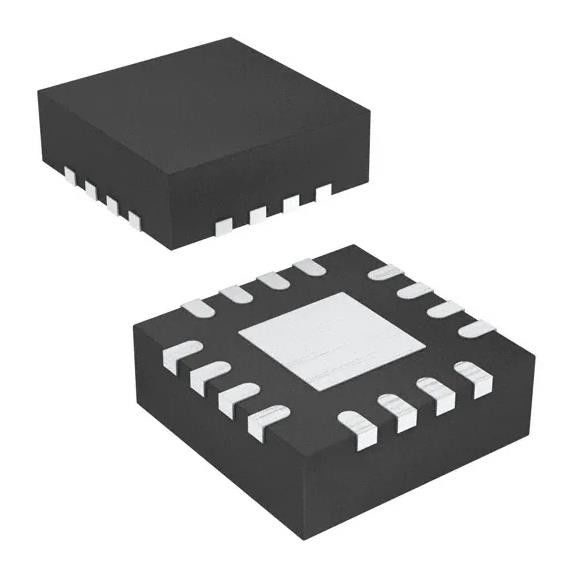

| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x4) |
| Base Product Number | TSC2008 |
Features of TSC2008TRGVRQ1
* Qualified for Automotive Applications
* 4-Wire Touch Screen Interface
* Single 1.2V to 3.6V Supply/Reference
* Ratiometric Conversion
* Effective Throughput Rate:
- Up to 20kHz (8-Bit) or 10kHz (12-Bit)
* Preprocessing to Reduce Bus Activity
* High-Speed SPI (up to 25MHz)
* Simple Command-Based User Interface:
- TSC2046 Compatible
- 8- or 12-Bit Resolution
* On-Chip Temperature Measurement
* Touch Pressure Measurement
* Digital Buffered PENIRQ
* On-Chip, Programmable PENIRQ Pull-up
* Auto Power-Down Control
Applications of TSC2008TRGVRQ1
• Multi-Screen Touch Control Systems
Environmental & Export Classifications of TSC2008TRGVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
