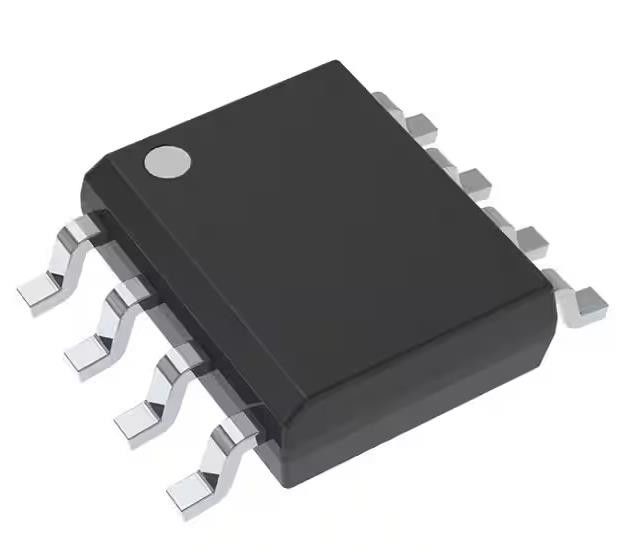

TLV5606IDR 10 Bit Digital to Analog Converter 1 8-SOIC Electronic IC Chips
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV5606IDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 10 | Settling Time: | 20µs |
|---|---|---|---|
| Number Of D/A Converters: | 1 | Reference Type: | External |
| Output Type: | Voltage - Buffered | Data Interface: | SPI |
| Architecture: | String DAC | Voltage - Supply, Analog: | 2.7V ~ 3.3V, 5V |
| INL/DNL (LSB): | ±0.5, ±0.2 | Operating Temperature: | -40°C ~ 85°C |
Product Description
TLV5606IDR 10 Bit Digital to Analog Converter 1 8-SOIC Electronic IC Chips
Specifications of TLV5606IDR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 20µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | TLV5606 |
Features of TLV5606IDR
10-Bit Voltage Output DAC
Programmable Settling Time vs Power Consumption
-3 µs in Fast Mode
-9 µs in Slow Mode
Ultra Low Power Consumption:
-900 µW Typ in Slow Mode at 3 V
-2.1 mW Typ in Fast Mode at 3 V
Differential Nonlinearity... <0.2 LSB Typ
Compatible With TMS320 and SPI Serial Ports
Power-Down Mode (10 nA)
Buffered High-Impedance Reference Input
Voltage Output Range . . . 2 Times the Reference Input Voltage
Monotonic Over Temperature
Available in MSOP Package
Applications of TLV5606IDR
Digital Servo Control Loops
Digital Offset and Gain Adjustment
Industrial Process Control
Machine and Motion Control Devices
Mass Storage Devices
Environmental & Export Classifications of TLV5606IDR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
