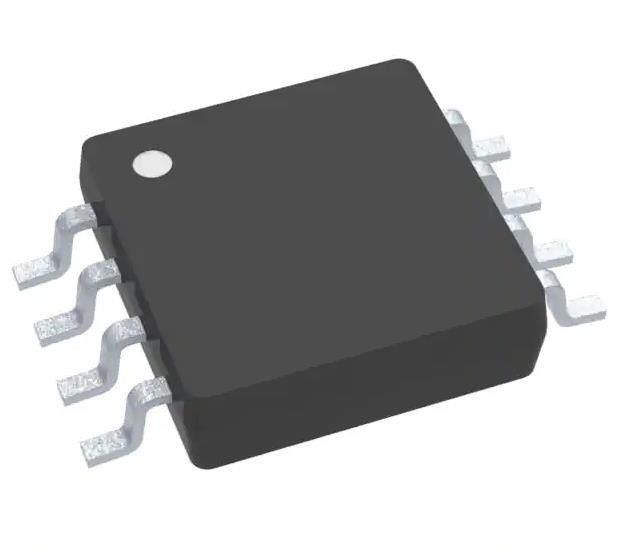

TLV5606IDGKR 10 Bit Digital to Analog Converter 1 8-VSSOP 2.7V ~ 3.3V, 5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV5606IDGKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 10 | Number Of D/A Converters: | 1 |
|---|---|---|---|
| Settling Time: | 20µs | Output Type: | Voltage - Buffered |
| Data Interface: | SPI | Reference Type: | External |
| Voltage - Supply, Analog: | 2.7V ~ 3.3V, 5V | INL/DNL (LSB): | ±0.5, ±0.2 |
| Operating Temperature: | -40°C ~ 85°C | Architecture: | String DAC |
Product Description
TLV5606IDGKR 10 Bit Digital to Analog Converter 1 8-VSSOP 2.7V ~ 3.3V, 5V
Specifications of TLV5606IDGKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 20µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | TLV5606 |
Features of TLV1578CDAR
10-Bit Voltage Output DAC
Programmable Settling Time vs Power Consumption
-3 µs in Fast Mode
-9 µs in Slow Mode
Ultra Low Power Consumption: 900 µW Typ in Slow Mode at 3 V 2.1 mW Typ in Fast Mode at 3 V
Differential Nonlinearity... <0.2 LSB Typ
Compatible With TMS320 and SPI Serial Ports
Power-Down Mode (10 nA)
Applications of TLV5606IDGKR
Digital Servo Control Loops
Digital Offset and Gain Adjustment
Industrial Process Control
Machine and Motion Control Devices
Mass Storage Devices
Environmental & Export Classifications of TLV5606IDGKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
