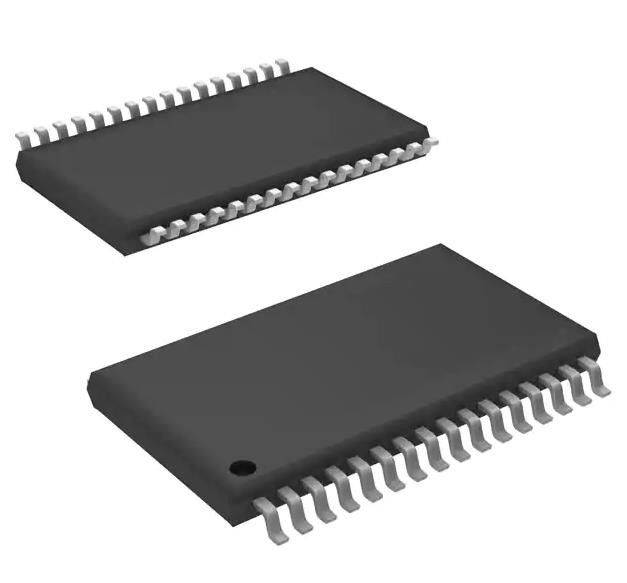

TLV1578CDAR 10 Bit Analog to Digital Converter 8 Input 1 SAR 32-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV1578CDAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 10 | Number Of Inputs: | 8 |
|---|---|---|---|
| Input Type: | Single Ended | Data Interface: | Parallel |
| Configuration: | MUX-ADC | Number Of A/D Converters: | 1 |
| Architecture: | SAR | Reference Type: | External |
| Voltage - Supply, Analog: | 2.7V ~ 5.5V | Voltage - Supply, Digital: | 2.7V ~ 5.5V |
Product Description
TLV1578CDAR 10 Bit Analog to Digital Converter 8 Input 1 SAR 32-TSSOP
Specifications of TLV1578CDAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 32-TSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 32-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | TLV1578 |
Features of TLV1578CDAR
* Fast Throughput Rate: 1.25 MSPS at 5 V, 625 KSPS at 3 V
* Wide Analog Input: 0 V to AVDD
* Differential Nonlinearity Error: < ± 1 LSB
* Integral Nonlinearity Error: < ± 1 LSB
* 8-to-1 Analog MUX – TLV1578
* Internal OSC
* Single 2.7-V to 5.5-V Supply Operation
* Low Power: 12 mW at 3 V and 35 mW at 5 V
* Auto Power Down of 1 mA Max
* Software Power Down: 10 µA Max
* Hardware Configurable
* DSP and Microcontroller Compatible Parallel Interface
* Binary/Twos Complement Output
* Hardware Controlled Extended Sampling
* Channel Sweep Mode Operation and Channel Select
* Hardware or Software Star
Applications of TLV1578CDAR
* Mass Storage and HDD
* Automotive
* Digital Servos
* Process Control
* General-Purpose DSP
* Im
Environmental & Export Classifications of TLV1578CDAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
