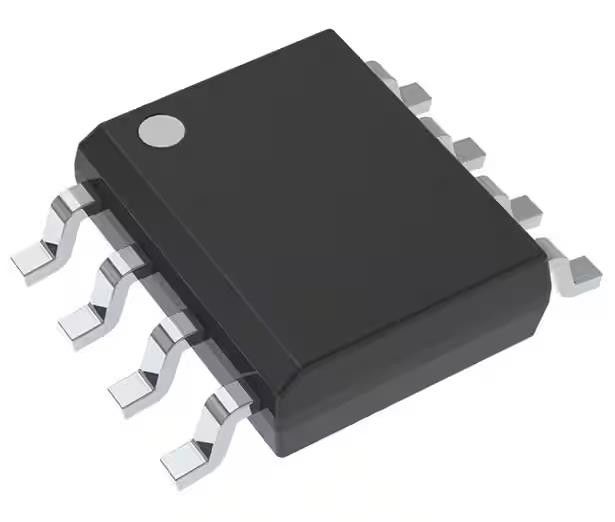

TLC5615CDR 10 Bit Digital to Analog Electronic IC Chips Converter 1 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLC5615CDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 10 | Number Of D/A Converters: | 1 |
|---|---|---|---|
| Settling Time: | 12.5µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI |
| Reference Type: | External | Voltage - Supply, Analog: | 5V |
| Voltage - Supply, Digital: | 5V | INL/DNL (LSB): | ±1 (Max), ±0.1 |
Product Description
TLC5615CDR 10 Bit Digital to Analog Electronic IC Chips Converter 1 8-SOIC
Specifications of TLC5615CDR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 12.5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±0.1 |
| Architecture | String DAC |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | TLC5615 |
Features of TLC5615CDR
* 10-Bit CMOS Voltage Output DAC in an8-Terminal Package
* 5V Single Supply Operation
* 3-Wire Serial Interface
* High-lmpedance Reference Inputs
* Voltage Output Range: 2 Times the ReferenceInput Voltage
* Internal Power-On Reset
* Low Power Consumption: 1.75mW Max
* Update Rate of 1.21MHz
* Settling Time to 0.5LSB: 12.5us Typ
* Monotonic Over Temperature
* Pin-Compatible With the Maxim MAX515
Applications of TLC5615CDR
* Battery-Powered Test Instruments
* Digital Offset and Gain Adjustment
* Battery Operated/Remote Industrial Controls
* Machine and Motion Control Devices
* Cellular Telephones
Environmental & Export Classifications of TLC5615CDR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
