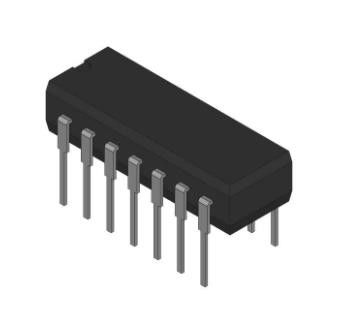

CD54HCT08F3A IC Channel HCT Types 2V to 6V Operation Bus Driver Outputs 15 LSTTL

Product Description

CD54HCT08F3A IC Channel HCT Types 2V to 6V Operation Bus Driver Outputs 15 LSTTL​

Specifications of CD54HCT08F3A


Features of CD54HCT08F3A

• Buffered Inputs
• Typical Propagation Delay: 7ns at V CC = 5V, C L = 15pF, TA = 25 o C
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55o C to 125o C
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: N IL = 30%, NIH = 30% of VCC at V CC = 5V
• HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), V IH = 2V (Min)
• CMOS Input Compatibility, Il ≤ 1μA at VOL, VOH

Applications of CD54HCT08F3A

The CD54HC08, CD54HCT08, CD74HC08, and CD74HCT08 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL
gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The 74HCT logic family is functionally pin compatible with the standard 74LS logic family.

Environmental & Export Classifications of CD54HCT08F3A
