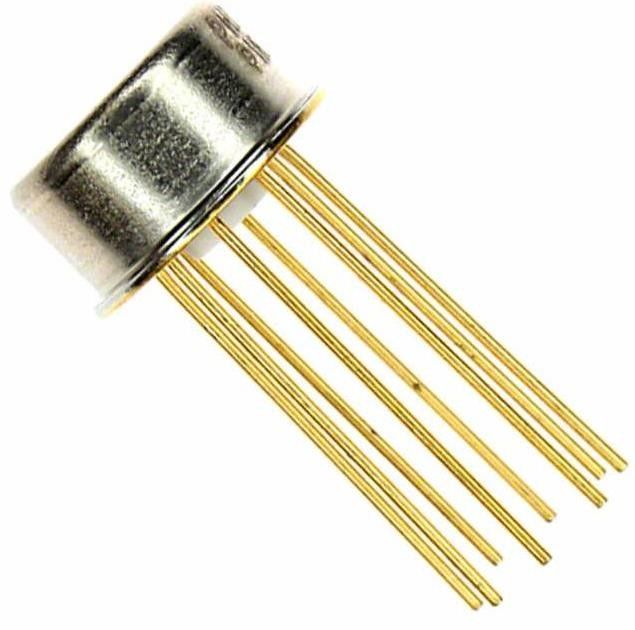

REF02AJ/883 Voltage Reference Electronic IC Chips V TO-99-8 36 V 1.4 mA maximum
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | REF02AJ/883 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mounting Type: | Through Hole | Voltage Maximum: | 36 V |
|---|---|---|---|
| Capability Maximum: | 1.4 MA | Package: | Tube |
| Package / Case: | TO-99-8 Metal Can | Supplier Device Package: | TO-99-8 |
Product Description
REF02AJ/883 Voltage Reference Electronic IC Chips V TO-99-8 36 V 1.4 mA maximum
Specifications of SN54LS09J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Analog Devices Inc. |
| Series | * |
| Package | Tube |
| Product Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 |
| Base Product Number | REF02 |
Features of SN54LS09J
* High output accuracy
- REF01: 10.0 V, ±0.3% maximum
- REF02: 5.0 V, ±0.3% maximum
- REF03: 2.5 V, ±0.6% maximum
* Adjustable output: ± 3% minimum
- Excellent temperature stability
- REF01: 8.5 ppm/°C maximum
- REF02: 8.5 ppm/°C maximum
- REF03: 50 ppm/°C maximum
* Low noise
- REF01: 30 µV p-p typical
- REF02: 15 µV p-p typical
- REF03: 6 µV p-p typical
* High supply voltage range: up to 36 V maximum
* Low supply current: 1.4 mA maximum
* High load-driving capability: 10 mA maximum
* Temperature output function
Applications of SN54LS09J
* Precision data systems
* High resolution converters
* Industrial process control systems
* Precision instruments
* Military and aerospace applications
Environmental & Export Classifications of SN54LS09J
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
