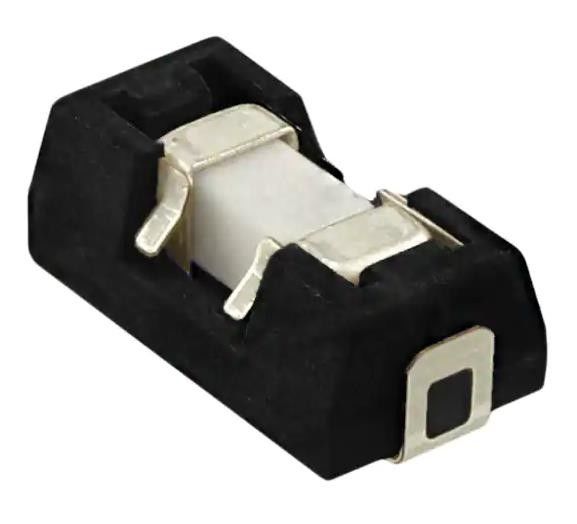

0154010.DRL 10 A 125 V AC 125 V DC Fuse Board Mount Requires Holder
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 0154010.DRL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mounting Type: | Requires Holder, Surface Mount | Fuse Type: | Board Mount (Cartridge Style Excluded) |
|---|---|---|---|
| Current Rating (Amps): | 0.416666667 | Voltage Rating - AC: | 125 V |
| Voltage Rating - DC: | 125 V | Response Time: | Fast Blow |
| Package / Case: | 2-SMD, Square End Block With Holder | Breaking Capacity @ Rated Voltage: | 35A AC, 50A DC |
Product Description
0154010.DRL 10 A 125 V AC 125 V DC Fuse Board Mount Requires Holder
Specifications of 0154010.DRL
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Fuses | |
| Mfr | Littelfuse Inc. |
| Series | OMNI-BLOK® 154L |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Mounting Type | Requires Holder, Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 0.416666667 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block with Holder |
| Breaking Capacity @ Rated Voltage | 35A AC, 50A DC |
| Melting I²t | 26.46 |
| Approval Agency | PSE, UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) |
| DC Cold Resistance | 0.0056 Ohms |
Features of 0154010.DRL
• Easy fuse replacement
• Miniature size
• RoHS-compliant and Halogen-free
• Very Fast-Acting and Time-Lag options available
• Holder sized to fit a range of Nano2® type fuses
• Wide range of current ratings available
- Fast-Acting Fuses: 62mA - 10A
- Slo-Blo Fuses: 375mA - 5A
• Wide operating temperature range
• Heat-resistant fuseholder, UL94 V-0
• 260°C reflow capable fuseholder
• Recognized to UL/CSA/ NMX 248-1, UL/CSA/ NMX 248-14 and UL/CSA/ NMX 4248-1.
Applications of 0154010.DRL
The RoHS compliant 154 Series OMNI-BLOK® Fuse and Holder Assembly offers a solution for efficient installation and easy replacement of miniature Nano2® surface mount fuses.
Environmental & Export Classifications of 0154010.DRL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.10.0040 |
