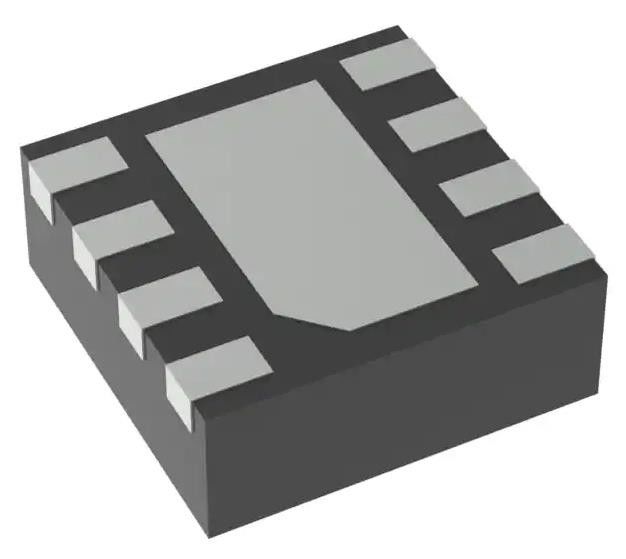

DRV8838DSGR Motor Electronic IC Chips Driver NMOS On/Off 8-WSON (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV8838DSGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Motor Type - AC, DC: | Brushed DC | Function: | Driver - Fully Integrated, Control And Power Stage |
|---|---|---|---|
| Output Configuration: | Half Bridge (2) | Interface: | On/Off |
| Technology: | NMOS | Applications: | DC Motors, General Purpose, Solenoids |
| Current - Output: | 1.8A | Voltage - Supply: | 1.8V ~ 7V |
| Voltage - Load: | 0V ~ 11V | Operating Temperature: | -40°C ~ 150°C (TJ) |
Product Description
DRV8838DSGR Motor Electronic IC Chips Driver NMOS On/Off 8-WSON (2x2)
Specifications of DRV8838DSGR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Motor Drivers, Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | On/Off |
| Technology | NMOS |
| Step Resolution | - |
| Applications | DC Motors, General Purpose, Solenoids |
| Current - Output | 1.8A |
| Voltage - Supply | 1.8V ~ 7V |
| Voltage - Load | 0V ~ 11V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Base Product Number | DRV8838 |
Features of DRV8838DSGR
• H-Bridge Motor Driver
– Drives a DC Motor or Other Loads
– Low MOSFET On-Resistance: HS + LS 280 mΩ
• 1.8-A Maximum Drive Current
• Separate Motor and Logic Supply Pins:
– Motor VM: 0 to 11 V
– Logic VCC: 1.8 to 7 V
• PWM or PH-EN Interface
– DRV8837: PWM, IN1 and IN2
– DRV8838: PH and EN
• Low-Power Sleep Mode With 120-nA Maximum Sleep Current
– nSLEEP pin
• Small Package and Footprint
– 8-Pin WSON With Thermal Pad
– 2.0 × 2.0 mm
• Protection Features
– VCC Undervoltage Lockout (UVLO)
– Overcurrent Protection (OCP)
– Thermal Shutdown (TSD)
Applications of DRV8838DSGR
• Cameras
• DSLR Lenses
• Consumer Products
• Toys
• Robotics
• Medical Devices
Environmental & Export Classifications of DRV8838DSGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
