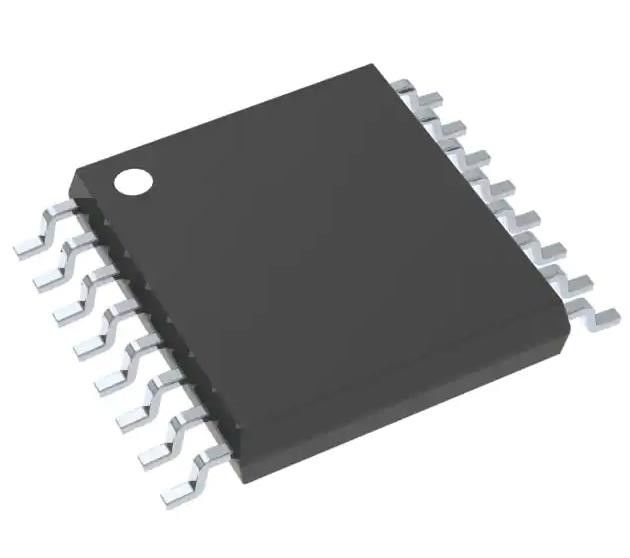

SN65LVDS049PWR 2/2 Transceiver Electronic IC Chips Full LVDS 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65LVDS049PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | LVDS |
|---|---|---|---|
| Number Of Drivers/Receivers: | 2/2 | Duplex: | Full |
| Data Rate: | 400Mbps | Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 16-TSSOP (0.173", 4.40mm Width) |
| High Light: | SN65LVDS049PWR,SN65LVDS049PWR Electronic IC Chips,Transceiver Electronic IC Chips |
||
Product Description
SN65LVDS049PWR 2/2 Transceiver Electronic IC Chips Full LVDS 16-TSSOP
Specifications of SN65LVDS049PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 65LVDS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Transceiver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Data Rate | 400Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 65LVDS049 |
Features of SN65LVDS049PWR
* DS90LV049 Compatible
* Up to 400-Mbps Signaling Rates
* Flow-Through Pinout
* 50-ps Driver Channel-to-Channel Skew (Typical)
* 50-ps Receiver Channel-to-Channel Skew(Typical)
* 3.3-V Power Supply
* High-lmpedance Disable for All Outputs
* Internal Fail-safe Biasing of Receiver Inputs
* 1.4-ns Driver Propagation Delay (Typical)
* 1.9-ns Receiver Propagation Delay (Typical)
* High-Impedance Bus Pins on Power Down
* ANSI TIA/EIA-644-A Compliant
* Receiver Input and Driver Output ESD Exceeds10 kV
* 16-Pin TSSOP Package
Introduction of SN65LVDS049PWR
* Full-Duplex LVDS Communications of Clock and Data
* Printers
Environmental & Export Classifications of SN65LVDS049PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
