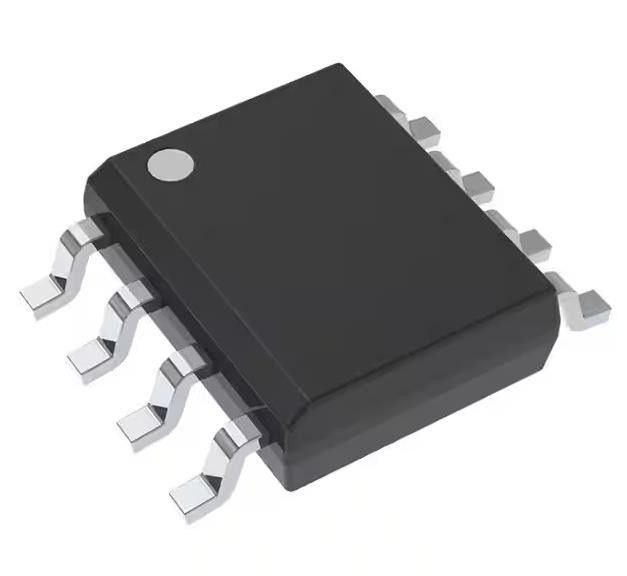

REF5025ID Series Voltage Reference IC Fixed 2.5V V ±0.05% 10 MA 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | REF5025ID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Voltage - Output (Min/Fixed): | 2.5V |
|---|---|---|---|
| Current - Output: | 10 MA | Tolerance: | ±0.05% |
| Temperature Coefficient: | 3ppm/°C | Noise - 0.1Hz To 10Hz: | 7.5µVpp/V |
| Voltage - Input: | 1.2mA | Operating Temperature: | -40°C ~ 125°C (TA) |
| High Light: | REF5025ID,REF5025ID Voltage Reference IC |
||
Product Description
REF5025ID Series Voltage Reference IC Fixed 2.5V V ±0.05% 10 mA 8-SOIC
Specifications of REF5025ID
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 2.5V |
| Current - Output | 10 mA |
| Tolerance | ±0.05% |
| Temperature Coefficient | 3ppm/°C |
| Noise - 0.1Hz to 10Hz | 7.5µVpp/V |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 2.7V ~ 18V |
| Current - Supply | 1.2mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | REF5025 |
Features of REF5025ID
• Low temperature drift:
– High-grade: 3 ppm/°C (maximum)
– Standard-grade: 8 ppm/°C (maximum)
• High accuracy:
– High-grade: 0.05% (maximum)
– Standard-grade: 0.1% (maximum)
• Low noise: 3 μVPP/V
• Excellent long-term stability:
– 22 ppm after first 1000 hours (SOIC-8)
– 50 ppm after first 1000 hours (VSSOP-8)
• High-output current: ±10 mA
• Temperature range: –40°C to 125°C
Introduction of REF5025ID
• Precision data acquisition systems
• Semiconductor test equipment
• Industrial process controls
• Medical instrumentation
• Pressure and temperature transmitters
• Lab and field instrumentation
Environmental & Export Classifications of REF5025ID
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
