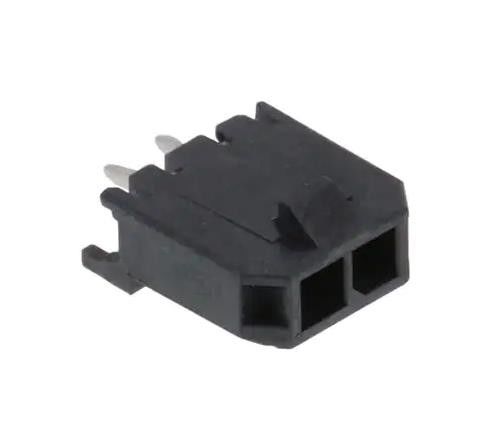

43650-0216 Rectangular Connector Header Through Hole 2 Position 0.118" ( 3.00mm )
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 43650-0216 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Positions Loaded: | All | Style: | Board To Cable/Wire |
|---|---|---|---|
| Shrouding: | Shrouded - 4 Wall | Contact Length - Post: | 0.125" (3.18mm) |
| Insulation Height: | 0.390" (9.91mm) | Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Material Flammability Rating: | UL94 V-0 | Mated Stacking Heights: | 17.56mm |
| High Light: | 43650-0216,43650-0216 Rectangular Connector,Through Hole Rectangular Connector |
||
Product Description
43650-0216 Connector Header Through Hole 2 position 0.118" (3.00mm)
Specifications of 43650-0216
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Molex |
| Series | Micro-Fit 3.0 43650 |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | 17.56mm |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Base Product Number | 43650 |
Features of 43650-0216
* Operating: - 40°C to + 105°C (Including Terminal Temperature Rise)
* Nonoperating: - 40°C to + 105°C
Introduction of 43650-0216
This Product Specification covers the performance requirements and test methods of Micro-Fit 3.00 mm (.118 inch) centerline (pitch) wire to board and wire to wire connector systems terminated with 18 to 30 AWG stranded wire using crimp technology with tin or gold plating.
Environmental & Export Classifications of 43650-0216
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
