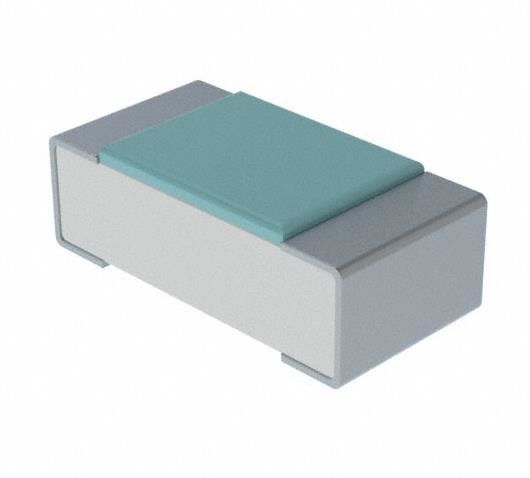

RK73H1JTTD24R3F ±1% 0.125W, 1/8W Chip Resistor Automotive Moisture Resistant
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RK73H1JTTD24R3F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Automotive AEC-Q200, Moisture Resistant | Resistance: | 24.3 Ohms |
|---|---|---|---|
| Tolerance: | ±1% | Power (Watts): | 0.125W, 1/8W |
| Composition: | Thick Film | Temperature Coefficient: | ±100ppm/°C |
| Operating Temperature: | -55°C ~ 155°C | Package / Case: | 0603 (1608 Metric) |
| High Light: | RK73H1JTTD24R3F,RK73H1JTTD24R3F Chip Resistor,Automotive Chip Resistor |
||
Product Description
RK73H1JTTD24R3F ±1% 0.125W, 1/8W Chip Resistor Automotive Moisture Resistant
Specifications of RK73H1JTTD24R3F
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | KOA Speer Electronics, Inc. |
| Series | RK73H |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Resistance | 24.3 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | RK73H1J |
Features of RK73H1JTTD24R3F
• Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode,resistor element and glass.
• AEC-Q200 Tested: 0201 (1H), 0402 (1E), 0603 (1J), 0805 (2A), 1206 (2B), 1210 (2E), 2010 (2H/W2H), 2512 (3A/W3A/W3A2)
Introduction of RK73H1JTTD24R3F
* Rated voltage = √Power rating x resistance value or max. working voltage, whichever is lower * 1F: E-24. 1H: 1.0~9.1, 1M~10MΩ: E-24. If any questions arise whether to use the “Rated Ambient Temperature” or the “Rated Terminal Part Temperature,” please give priority to the “Rated Terminal Part Temperature.” Prior to use and for more details refer to “Introduction of the derating curves based on the terminal part temperature” in the beginning of the catalog. While using under high power, the temperature of the product may increase depending on the condition of heat dissipation from PCB. Be sure to check the terminal part temperature as well as precautions to use on delivery specification before use. *The nominal resistance value for RK73H1F (10Ω≦R≦2MΩ) and RK73H1H (1Ω≦R≦9.1Ω, 1MΩ≦R≦10MΩ) is E24
Environmental & Export Classifications of RK73H1JTTD24R3F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
