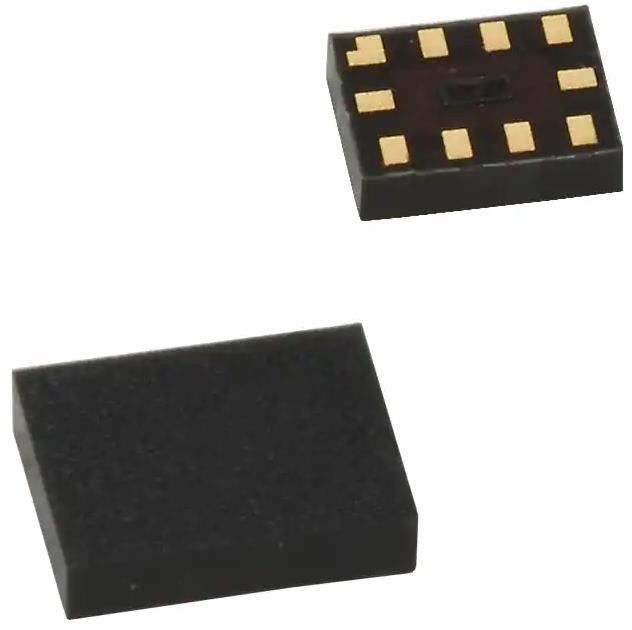

FSUSB30L10X USB Electronic IC Chips Analog Switch IC 1 Channel 10-UFQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FSUSB30L10X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Break-Before-Make, USB 2.0 | Applications: | USB |
|---|---|---|---|
| Switch Circuit: | DPDT | Number Of Channels: | 1 |
| On-State Resistance (Max): | 10Ohm | Voltage - Supply, Single (V+): | 3V ~ 4.3V |
| -3db Bandwidth: | 720MHz | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | FSUSB30L10X,Analog Switch Electronic IC Chips,FSUSB30L10X Electronic IC Chips |
||
Product Description
FSUSB30L10X USB Electronic IC Chips Switch IC 1 Channel 10-MicroPak™
Specifications of FSUSB30L10X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches - Special Purpose | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | - |
| Switch Circuit | DPDT |
| Number of Channels | 1 |
| On-State Resistance (Max) | 10Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 720MHz |
| Features | Break-Before-Make, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN Exposed Pad |
| Supplier Device Package | 10-MicroPak™ |
| Base Product Number | FSUSB30 |
Features of FSUSB30L10X
Low On Capacitance: 3.7pF (Typical)
* Low On Resistance: 6.5 (Typical)
* Low Power Consumption: 1μA (Maximum)
– 10μA Maximum I CCT over an Expanded Control Voltage Range (V IN = 2.6V, V CC = 4.3V)
* Wide -3dB Bandwidth, >720MHz
* 8kV ESD Protection
* Power-Off Protection when VCC = 0V; D+/D- Pins can Tolerate up to 5.5V
* Packaged in:
– 10-lead MicroPak™ (1.6 x 2.1mm)
– 10-lead MSOP
– 10-lead UMLP (1.4 x 1.8mm)
Introduction of FSUSB30L10X
* Cell phone, PDA, Digital Camera, and Notebook LCD Monitor, TV, and Set-top Box
Environmental & Export Classifications of FSUSB30L10X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
