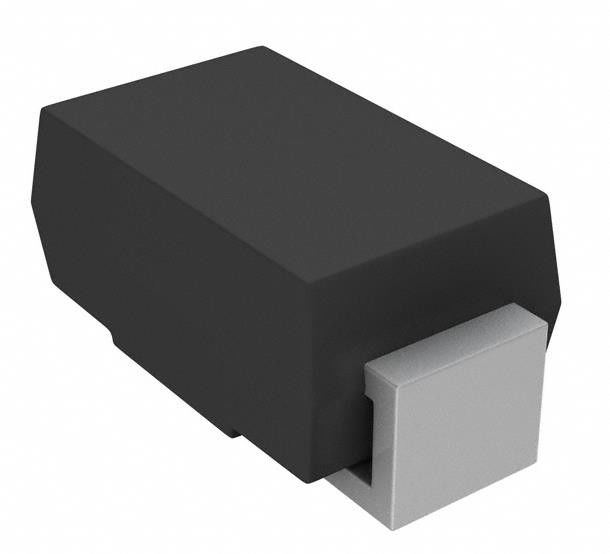

SS15-E3/61T Diode 50 V 1A Electronic Components Surface Mount DO-214AC (SMA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SS15-E3/61T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | Schottky | Voltage - DC Reverse (Vr) (Max): | 50 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 1A | Voltage - Forward (Vf) (Max) @ If: | 750 MV @ 1 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Current - Reverse Leakage @ Vr: | 200 µA @ 50 V |
| Mounting Type: | Surface Mount | Package / Case: | DO-214AC, SMA |
| High Light: | SS15-E3/61T,SS15-E3/61T Electronic Components |
||
Product Description
SS15-E3/61T Diode 50 V 1A Electronic Components Surface Mount DO-214AC (SMA)
Specifications of SS15-E3/61T
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 50 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | SS15 |
Features of SS15-E3/61T
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020,LF maximum peak of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
Applications of SS15-E3/61T
For use in low voltage, high frequency inverters,freewheeling, DC/DC converters, and polarity protection applications.
Environmental & Export Classifications of SS15-E3/61T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
