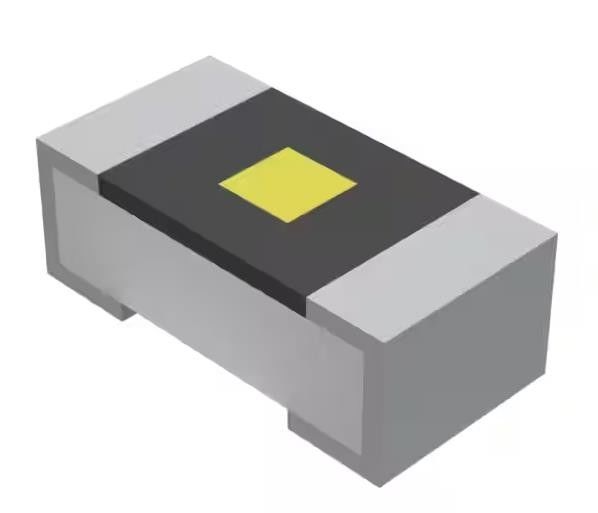

ESR25JZPJ101 100 Ohms ±5% 0.667W, 2/3W Chip Resistor Automotive AEC-Q20
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ESR25JZPJ101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Automotive AEC-Q200, Pulse Withstanding | Resistance: | 100 Ohms |
|---|---|---|---|
| Tolerance: | ±5% | Power (Watts): | 0.667W, 2/3W |
| Composition: | Thick Film | Temperature Coefficient: | ±200ppm/°C |
| Operating Temperature: | -55°C ~ 155°C | Package / Case: | 1210 (3225 Metric) |
| High Light: | ESR25JZPJ101,ESR25JZPJ101 Chip Resistor |
||
Product Description
ESR25JZPJ101 100 Ohms ±5% 0.667W, 2/3W Chip Resistor Automotive AEC-Q20
Specifications of ESR25JZPJ101
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Rohm Semiconductor |
| Series | ESR |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Resistance | 100 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.667W, 2/3W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
Features of ESR25JZPJ101
1)Exclusive resistive element pattern and laser trimming technology results in significantly improved surge resistance characteristics.
2)2kV to 5kV electrostatic discharge resistance.
3)Superior power ratings.
4)ROHM resistors have obtained ISO9001 / IATF16949 certification.
5)Corresponds to AEC-Q200.
Introduction of ESR25JZPJ101
If you intend to use our Products in devices requiring extremely high reliability (such as medical equipment (Note 1) aircraft/spacecraft, nuclear power controllers, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Specific Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications.
Environmental & Export Classifications of ESR25JZPJ101
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
