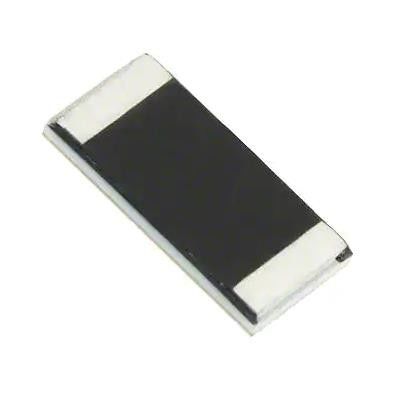

MCS3264R015FER 15 mOhms ±1% 2W Chip Resistor 2512 Current Sense Flame Retardant
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MCS3264R015FER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Current Sense, Flame Retardant Coating, Safety | Resistance: | 15 MOhms |
|---|---|---|---|
| Tolerance: | ±1% | Power (Watts): | 2W |
| Composition: | Metal Element | Temperature Coefficient: | ±50ppm/°C |
| Operating Temperature: | -55°C ~ 150°C | Package / Case: | 2512 (6432 Metric) |
Product Description
MCS3264R015FER 15 mOhms ±1% 2W Chip Resistor 2512 Current Sense Flame Retardant
Specifications of MCS3264R015FER
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Ohmite |
| Series | MCS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Resistance | 15 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 2W |
| Composition | Metal Element |
| Features | Current Sense, Flame Retardant Coating, Safety |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 3264 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Features of MCS3264R015FER
• NiCu or MnCu resistive alloy; material TCR ±10ppm/°K
• Marking epoxy UL-94-V0 conformal
• 96% alumina substrate thermo dissipation protective layer
• Cu Terminal Electrode with Pb Free termination (60% Sn, 40% Ni)
• Flame-retardant epoxy protective coat (UL-94-V0)
• Ultra low resistance value (0.005Ω ~ 0.050Ω)
• Precision resistance alloy (NiCr20AlSi, or CuMnNi); material selected for low TCR (<50ppm/°C)
• Low inductance, low thermo EMF (<50µV/°C)
Applications of MCS3264R015FER
• Industrial electronics, power electronics: power supply, DC/DC converter, AC/DC converter, motor controller, automotive electronics
• Battery charger, PC, PDA, 3C products, Telecommunications, instruments, white goods
Environmental & Export Classifications of MCS3264R015FER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8533.21.0090 |
