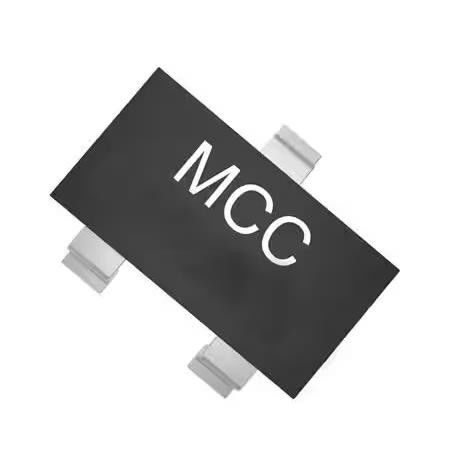

MMBD4448 -TP Diode 75 V 250mA Surface Mount SOT-23 Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MMBD4448 -TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 75 V | Current - Average Rectified (Io): | 250mA |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1.25 V @ 150 MA | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 4 Ns | Current - Reverse Leakage @ Vr: | 2.5 µA @ 75 V |
| Capacitance @ Vr, F: | 4pF @ 0V, 1MHz | Package / Case: | TO-236-3, SC-59, SOT-23-3 |
Product Description
MMBD4448 -TP Diode 75 V 250mA Surface Mount SOT-23 Electronic Components
Specifications of MMBD4448 -TP
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 250mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | MMBD4448 |
Features of MMBD4448 -TP
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automatic Insertion
• For General Purpose Switching Applications
• Halogen Free. "Green" Device (Note 1)
• Moisture Sensitivity Level 1
• Epoxy Meets UL 94 V-0 Flammability Rating
• Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
Applications of MMBD4448 -TP
• Operating Junction Temperature Range: -55°C to +150°C
• Storage Temperature Range: -55°C to +150°C
• Thermal Resistance(Note 2):357°C/W Junction to Ambient
Environmental & Export Classifications of MMBD4448 -TP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
