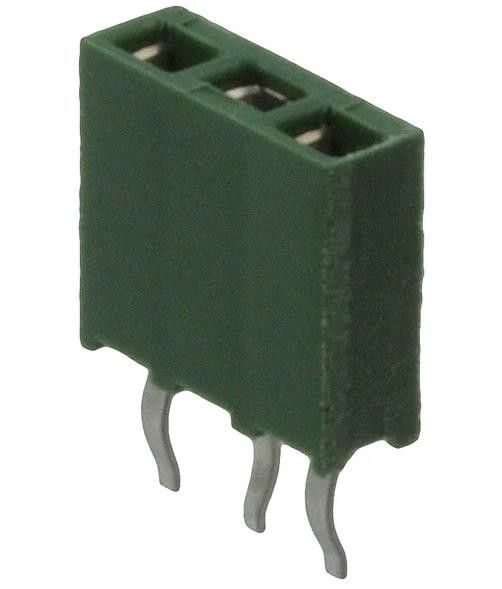

215297-3 3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 215297-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Positions: | 3 | Number Of Positions Loaded: | All |
|---|---|---|---|
| Pitch - Mating: | 0.100" (2.54mm) | Number Of Rows: | 1 |
| Mounting Type: | Through Hole | Termination: | Kinked Pin, Solder |
| Fastening Type: | Push-Pull | Contact Finish - Mating: | Gold |
Product Description
215297-3 3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Specifications of 215297-3
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Receptacles, Female Sockets | |
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPMODU HV-100 |
| Package | Bulk |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Insulation Color | Green |
| Insulation Height | 0.276" (7.00mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Insulation Material | Polyester, Glass Filled |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Base Product Number | 215297 |
Features of 215297-3
* Product Type Features
- PCB Connector Assembly Type PCB Mount Receptacle
- Connector System Board-to-Board
- Sealable No
- Connector & Contact Terminates To Printed Circuit Board
Applications of 215297-3
TE Internal #: 215297-3
PCB Mount Receptacle, Vertical, Board-to-Board, 3 Position, 2.54 mm [.1 in] Centerline, Gold, Through Hole - Solder, Black, AMPMODU HV-100/HV-190
Environmental & Export Classifications of 215297-3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
