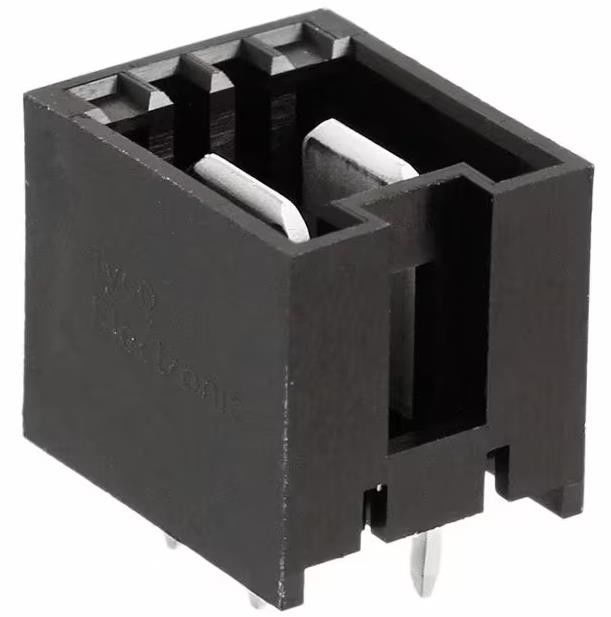

521383-2 Connector Header Through Hole 2 position 0.197" (5.00mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 521383-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Contact Length - Post: | 0.138" (3.50mm) | Insulation Height: | 0.504" (12.80mm) |
|---|---|---|---|
| Contact Finish Thickness - Mating: | 150.0µin (3.81µm) | Operating Temperature: | -40°C ~ 120°C |
| Material Flammability Rating: | UL94 V-0 | Voltage Rating: | 250VAC |
| Contact Finish Thickness - Post: | 150.0µin (3.81µm) | Contact Shape: | Rectangular |
Product Description
521383-2 Connector Header Through Hole 2 position 0.197" (5.00mm)
Specifications of 521383-2
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | TE Connectivity AMP Connectors |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.504" (12.80mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | Board Guide, Glow Wire Compliant |
| Operating Temperature | -40°C ~ 120°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | - |
| Voltage Rating | 250VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Applications | General Purpose |
| Base Product Number | 521383 |
Features of 521383-2
* Product Type Features
- Connector System Wire-to-Board
- Header Type Fully Shrouded
- Sealable No
- Connector & Contact Terminates To Printed Circuit Board
- PCB Connector Assembly Type PCB Mount Header
Applications of 521383-2
TE Internal #: 521383-2
PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, RAST 5 IDC Connectors
Environmental & Export Classifications of 521383-2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
