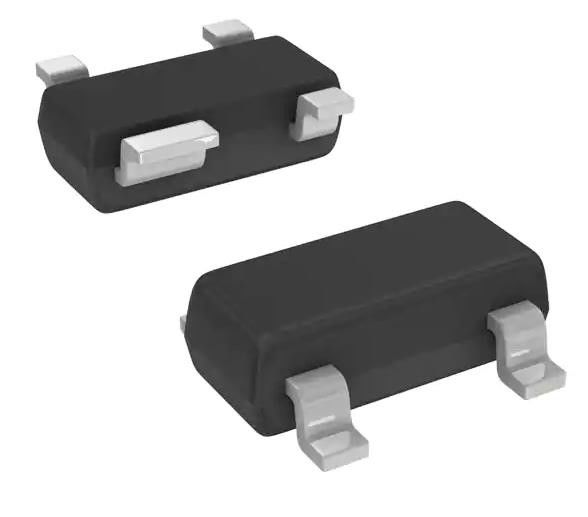

LCDA24C-1.TCT 50V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LCDA24C-1.TCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Unidirectional Channels: | 2 | Voltage - Reverse Standoff (Typ): | 24V (Max) |
|---|---|---|---|
| Voltage - Breakdown (Min): | 26.7V | Voltage - Clamping (Max) @ Ipp: | 50V |
| Current - Peak Pulse (10/1000µs): | 10A (8/20µs) | Power - Peak Pulse: | 500W |
| Operating Temperature: | -55°C ~ 125°C (TJ) | Package / Case: | TO-253-4, TO-253AA |
Product Description
LCDA24C-1.TCT 50V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
Specifications of LCDA24C-1.TCT
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Semtech Corporation |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 50V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 10pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143 |
| Base Product Number | LCDA24 |
Features of LCDA24C-1.TCT
* Transient protection to high-speed data lines
- IEC 61000-4-2(ESD) 15kV (air),8kV (contact)
- IEC 61000-4-4(EFT) 40A(5/50ns)
- IEC 61000-4-5 (Lightning) 0.5kV,10A(8/20ps)
* Configuration optimized for easy board layout
* Protects one line pair
* Low capacitance (<10pF) for high-speed interfaces
* Low clamping voltage
* Low leakage current
* Operating voltage: 24V
* Solid-state silicon-avalanche technology
Applications of LCDA24C-1.TCT
* ADSL Interfaces
* RS-232,RS-422,V.90 nterfaces
* Multi-Protocol Serial Transceivers
* High-Speed Data Lines
* Portable Electronics
* WAN/LAN Equipment
Environmental & Export Classifications of LCDA24C-1.TCT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
