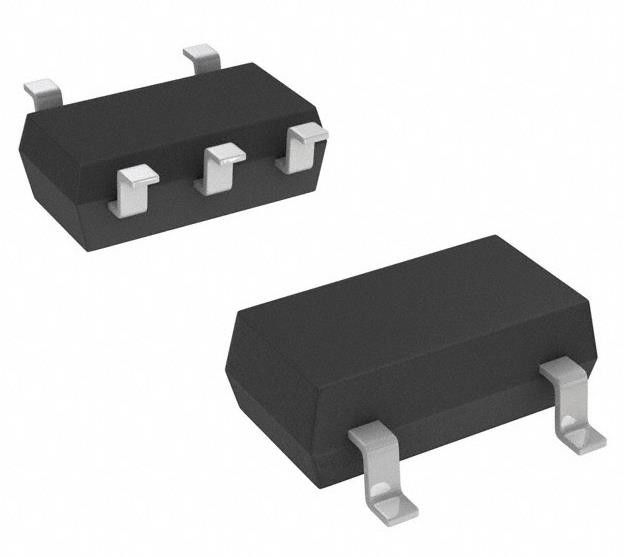

TC7SZ125FU,LJ(CT Non-Inverting 1 Element 1 Bit per Element 3-State Output 5-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC7SZ125FU,LJ(CT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | 3-State |
| Current - Output High, Low: | 32mA, 32mA | Voltage - Supply: | 1.8V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
Product Description
TC7SZ125FU,LJ(CT Non-Inverting 1 Element 1 Bit per Element 3-State Output 5-SSOP
Specifications of TC7SZ125FU,LJ(CT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC7SZ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-SSOP |
| Base Product Number | TC7SZ125 |
Features of RC0603FR-07169KL
(1) AEC-Q100 (Rev. H) (Note 1)
(2) Wide operating temperature range: Topr = -40 to 125 (Note 2)
(3) High output current: ±24 mA (min) at VCC = 3.0 V
(4) Super high speed operation: tpd = 2.6 ns (typ.) at VCC = 5.0 V, C L = 50 pF
(5) Operation voltage range: VCC = 1.65 to 5.5 V
(6) 5.5 V tolerant inputs
(7) 5.5 V power down protection output
(8) Matches the performance of TC74LCX series when operated at 3.3 V VCC
Applications of TC7SZ125FU,LJ(CT
Bus Buffer with 3-State Output
Environmental & Export Classifications of TC7SZ125FU,LJ(CT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
