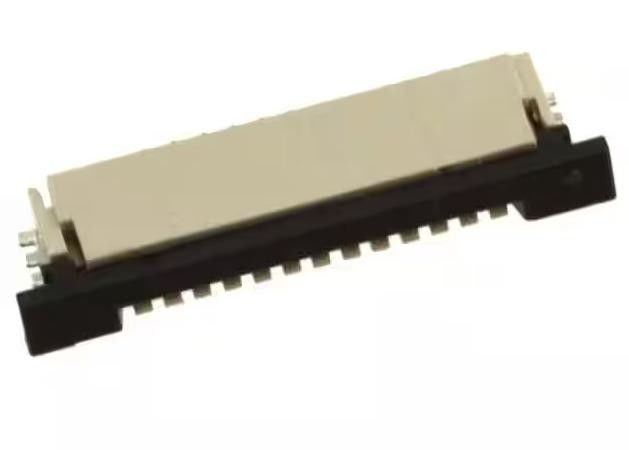

1-84952-2 12 Position FPC Connector Contacts, Bottom 0.039" Right Angle
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 1-84952-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Flat Flex Type: | FPC | Mounting Type: | Surface Mount, Right Angle |
|---|---|---|---|
| Connector/Contact Type: | Contacts, Bottom | Number Of Positions: | 12 |
| Pitch: | 0.039" (1.00mm) | Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm | Height Above Board: | 0.101" (2.56mm) |
Product Description
1-84952-2 12 Position FPC Connector Contacts, Bottom 0.039" Right Angle
Specifications of 1-84952-2
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Mfr | TE Connectivity AMP Connectors |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 12 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.101" (2.56mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 200V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Contact Finish Thickness | 78.7µin (2.00µm) |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | 84952 |
Features of 1-84952-2
* Product Type Features
- PCB Connector Assembly Type PCB Mount Receptacle
- Connector Product Type Connector Assembly
- Connector System Flex-to-Board
- Insertion Force Type Zero Insertion Force (ZIF)
- FPC Actuator Type Stuffer (Plunger Style)
-Connector & Contact Terminates To Flexible Printed Circuit (FPC)
Applications of 1-84952-2
TE Internal #: 1-84952-2
FPC Connectors, Flex-to-Board, 12 Position, .039 in [1 mm]
Centerline, Zero Insertion Force (ZIF), Right Angle, Surface Mount
Environmental & Export Classifications of 1-84952-2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
