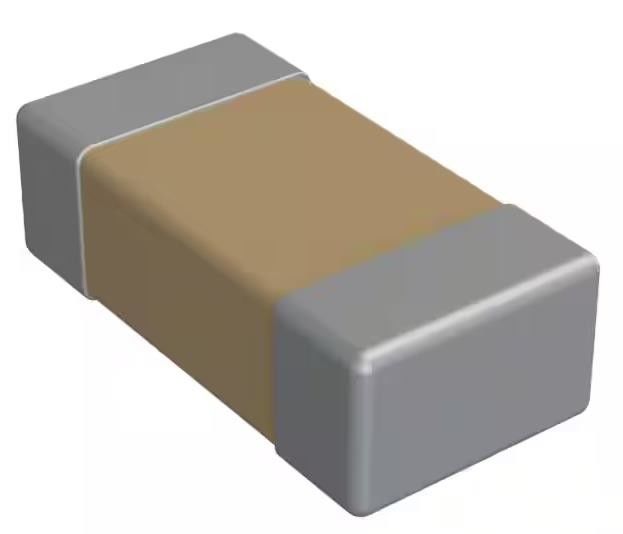

C0603C220J5GACTU 22 pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | C0603C220J5GACTU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Low ESL | Capacitance: | 22 PF |
|---|---|---|---|
| Tolerance: | ±5% | Voltage - Rated: | 50V |
| Temperature Coefficient: | C0G, NP0 | Operating Temperature: | -55°C ~ 125°C |
| Applications: | General Purpose | Thickness (Max): | 0.034" (0.87mm) |
Product Description
C0603C220J5GACTU 22 pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Specifications of C0603C220J5GACTU
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Ceramic Capacitors | |
| Mfr | KEMET |
| Series | SMD Comm C0G |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Capacitance | 22 pF |
| Tolerance | ±5% |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.034" (0.87mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | C0603C |
Features of C0603C220J5GACTU
• −55°C to +125°C operating temperature range
• Lead (Pb)-free, RoHS, and REACH compliant
• EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, and 2225 case sizes
• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V, and 250 V
• Capacitance offerings ranging from 0.5 pF up to 0.47 μF
• Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, ±10%, and ±20%
• No piezoelectric noise
• Extremely low ESR and ESL
• High thermal stability
• High ripple current capability
Applications of C0603C220J5GACTU
Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking and energy storage.
Environmental & Export Classifications of C0603C220J5GACTU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.24.0020 |
