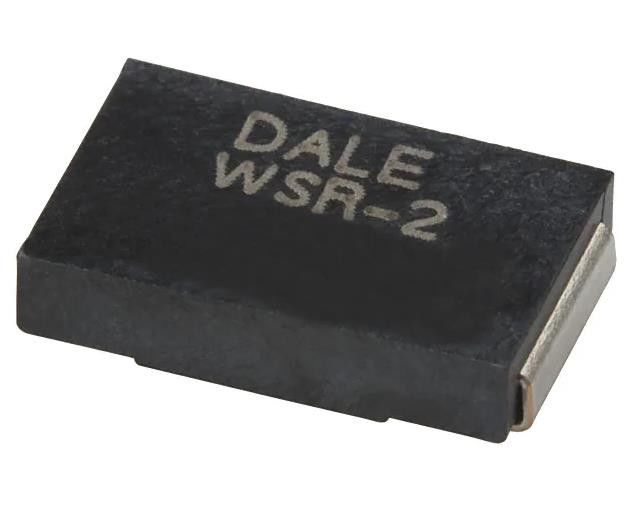

WSR2R1650FEA 165 mOhms ±1% 2W Chip Resistor 4527 J-Lead Anti-Sulfur Automotive
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | WSR2R1650FEA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Resistance: | 165 MOhms | Tolerance: | ±1% |
|---|---|---|---|
| Power (Watts): | 2W | Composition: | Metal Element |
| Temperature Coefficient: | ±75ppm/°C | Operating Temperature: | -65°C ~ 275°C |
| Package / Case: | 4527 J-Lead | Ratings: | AEC-Q200 |
Product Description
WSR2R1650FEA 165 mOhms ±1% 2W Chip Resistor 4527 J-Lead Anti-Sulfur Automotive
Specifications of WSR2R1650FEA
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Vishay Dale |
| Series | WSR |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Resistance | 165 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 2W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -65°C ~ 275°C |
| Package / Case | 4527 J-Lead |
| Supplier Device Package | 4527 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.455" L x 0.275" W (11.56mm x 6.98mm) |
| Height - Seated (Max) | 0.100" (2.54mm) |
Features of WSR2R1650FEA
• Molded high temperature encapsulation
• All welded construction of the Power Metal Strip® resistors are ideal for all types of current sensing, voltage division and pulse applications
• Proprietary processing technique produces extremely low resistance values (down to 0.001 )
• Sulfur resistance by construction that is unaffected by high sulfur environments
• Solid metal nickel-chrome or manganesecopper alloy resistive element with low TCR (< 20 ppm/°C)
• Very low inductance 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified (1)
Applications of WSR2R1650FEA
The W25X20CL (2M-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices.
Environmental & Export Classifications of WSR2R1650FEA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
