SZP6SMB36AT3G Automotive Electronic Component 49.9V Clamp 12A Ipp Tvs Diode Surface Mount SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZP6SMB36AT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 30.8V | Voltage - Breakdown (Min): | 34.2V |
| Voltage - Clamping (Max) @ Ipp: | 49.9V | Current - Peak Pulse (10/1000µs): | 12A |
| Power - Peak Pulse: | 600W | Applications: | Automotive |
| High Light: | SZP6SMB36AT3G automotive electronic component,12A automotive electronic component |
||
Product Description

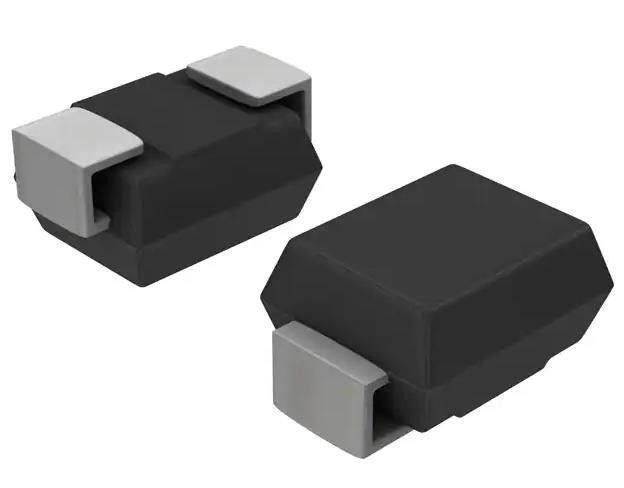

SZP6SMB36AT3G 49.9V Clamp 12A Ipp Tvs Diode Surface Mount SMB
Specifications of SZP6SMB36AT3G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30.8V |
| Voltage - Breakdown (Min) | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V |
| Current - Peak Pulse (10/1000µs) | 12A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 540pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | P6SMB |
Features of SZP6SMB36AT3G
■ Zener Transient Overvoltage Suppressors
■ Working Peak Reverse Voltage Range − 5.8 to 171 V (for Uni-directional), 9.4 to 70.1 V (for Bi-directional)
■ Standard Breakdown Voltage Range − 6.45 to 210V for Unidirectional , 10.5 to 86.1V for Bi-directional
■ Peak Power − 600 W @ 1 ms
■ ESD Rating of Class 3 (> 16 kV) per Human Body Model
■ Maximum Clamp Voltage @ Peak Pulse Current
■ Low Leakage < 5 µA Above 10 V
■ Response Time is Typically < 1 ns
■ Pb-free means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
■ SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC− Q101 Qualified and PPAP Capable
Introduction of SZP6SMB36AT3G
The SZP6SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.
Environmental & Export Classifications of SZP6SMB36AT3G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
