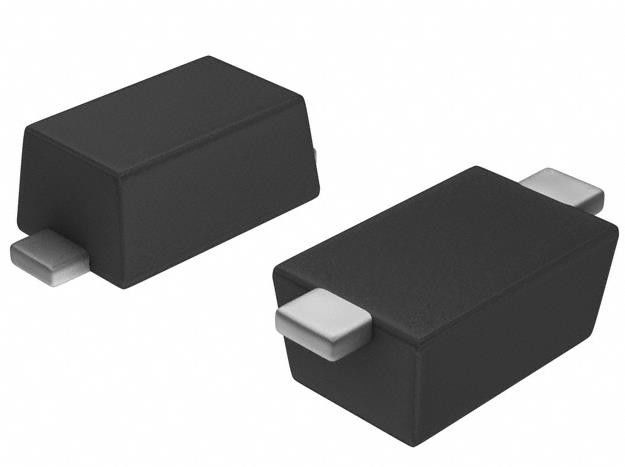

SS19FA Diode Electronic Components 90 V 1A Surface Mount SOD-123FA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SS19FA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 90 V | Current - Average Rectified (Io): | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 800 MV @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 50 µA @ 90 V | Capacitance @ Vr, F: | 55pF @ 4V, 1MHz |
| Mounting Type: | Surface Mount | Operating Temperature - Junction: | -55°C ~ 150°C |
| High Light: | SS19FA diode electronic components,SOD-123FA diode electronic components |
||
Product Description
SS19FA Diode Electronic Components 90 V 1A Surface Mount SOD-123FA
Specifications of SS19FA
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 90 V |
| Capacitance @ Vr, F | 55pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123FA |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | SS19 |
Features of SS19FA
• Low Power Loss, High Efficiency
• Guard Ring for Overvoltage Protection
• High Surge Current Capability
• UL Flammability 94V−0 Classification
• MSL 1 per J−STD−020
• Green Molding Compound
• These Devices are Pb−Free and are RoHS Compliant
Environmental & Export Classifications of SS19FA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
