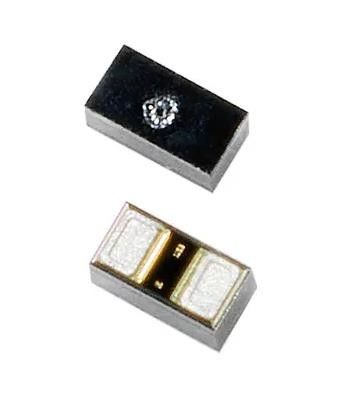

SP1005-01ETG 15.6V Clamp 10A (8/20µS) Ipp Tvs Diode Surface Mount SOD-882
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2GU04DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Zener | Bidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 6V (Max) | Voltage - Breakdown (Min): | 8.5V (Typ) |
| Voltage - Clamping (Max) @ Ipp: | 15.6V | Current - Peak Pulse (10/1000µs): | 10A (8/20µs) |
| Power Line Protection: | No | Applications: | Automotive |
| High Light: | SN74LVC2GU04DBVR,SOD-882 auto ic |
||
Product Description
SP1005-01ETG 15.6V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882
Specifications of SP1005-01ETG
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | Automotive, AEC-Q101, SP1005, SPA® |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Voltage - Breakdown (Min) | 8.5V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 15.6V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-882 |
| Supplier Device Package | SOD-882 |
Features of SP1005-01ETG
* Available in the Texas Instruments NanoFree rmPackage
* Supports 5-V Vcc Operation
* lnputs Accept Voltages to 5.5 V
* Max tpd of 3.7 ns at 3.3 V
* Low Power Consumption, 10-A Max lcc
* +24-mA Output Drive at 3.3 V
* Typical Volp (Output Ground Bounce)<0.8 V at Vcc = 3.3 V, TA = 25C
* Typical VoHv (Output Vo Undershoot)>2 V at Vcc = 3.3 V, TA = 25C
* loff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
* Can Be Used as a Down Translator toTranslate Inputs From a Max of 5.5 V Down tothe Vcc Level
* Unbuffered Outputs
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class Il
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Applications of SP1005-01ETG
• Mobile Phones
• Smart Phones
• Camcorders
• Portable Medical
• Digital Cameras
• MP3/PMP
• Portable Navigation Devices
• Tablets
• Point of Sale Terminals
Environmental & Export Classifications of SP1005-01ETG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
