SI53156-A01AGM PCI Express Clock Frequency Generator Fanout Buffer IC 100MHz 1 Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SI53156-A01AGM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Main Purpose: | PCI Express (PCIe) | Input: | Clock, Crystal |
|---|---|---|---|
| Output: | HCSL | Number Of Circuits: | 1 |
| Ratio - Input:Output: | 1:06 | Differential - Input:Output: | No/Yes |
| Frequency - Max: | 100MHz | Voltage - Supply: | 3.135V ~ 3.465V |
Product Description

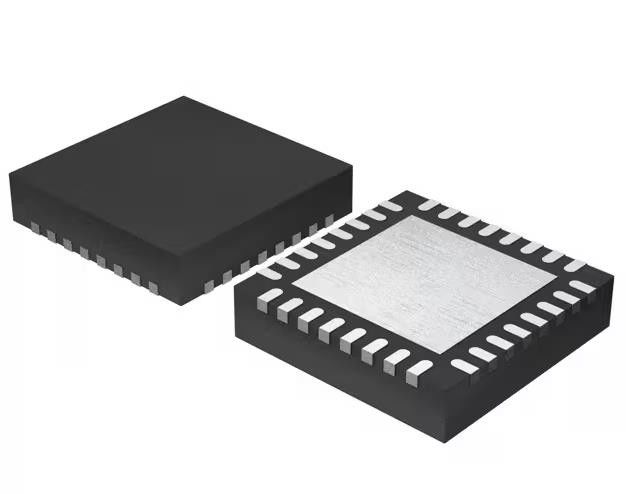

SI53156-A01AGM PCI Express Clock Frequency Generator Fanout Buffer IC 100MHz 1 Output
Specifications of SI53156-A01AGM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Application Specific Clock/Timing | |
| Mfr | Skyworks Solutions Inc. |
| Package | Tube |
| Product Status | Active |
| PLL | No |
| Main Purpose | PCI Express (PCIe) |
| Input | Clock, Crystal |
| Output | HCSL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:06 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 100MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | SI53156 |
Features of SI53156-A01AGM
* PCI-Express Gen 1, Gen 2, Gen 3,and Gen 4 common clock compliant
* Supports Serial ATA (SATA) at 100 MHz
* 100–210 MHz operation
* Low power, push pull, differential output buffers
* Internal termination for maximum integration
* Dedicated output enable pin for each output
* Six PCI-Express buffered clock outputs
* Clock input spread tolerable
* Supports LVDS outputs
* I2C support with readback capabilities
* Extended temperature: –40 to 85 oC
* 3.3 V power supply
* 32-pin QFN package
Applications of SI53156-A01AGM
* Network attached storage
* Multi-function printers
* Wireless access point
* Routers
Environmental & Export Classifications of SI53156-A01AGM
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
