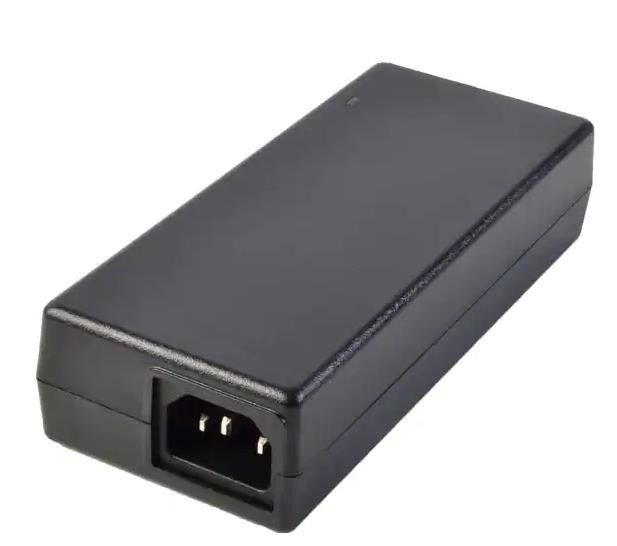

SDI90-12-U-P5 12V 84 W AC/DC External Desktop (Class I) Adapter Cord
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SDI90-12-U-P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Output Type: | Adjustable |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.24V | Voltage - Output (Max): | 16 V |
| Current - Output: | 20 MA | Tolerance: | ±0.48% |
| Current - Cathode: | 80 µA | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
SDI90-12-U-P5 12V 84 W AC/DC External Desktop (Class I) Adapter Cord
Specifications of SDI90-12-U-P5
| TYPE | DESCRIPTION |
| Category | Power Supplies - External/Internal (Off-Board) |
| AC DC Desktop, Wall Adapters | |
| Mfr | CUI Inc. |
| Series | SDI90-U (90W) |
| Package | Box |
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 7A |
| Power (Watts) | 84 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C14 |
| Size / Dimension | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) |
| Approval Agency | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
| Weight | 1.1 lbs (499 g) |
| Base Product Number | SDI90 |
Features of SDI90-12-U-P5
• level VI efficiency
• 90 W power
• universal input (90~264 Vac)
• single regulated outputs
• over voltage and short circuit protections
• UL/cUL, PSE safety approvals
• power factor correction
• custom designs available
• certified to 60950-1 and 62368-1 standards
Environmental & Export Classifications of SDI90-12-U-P5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9510 |
