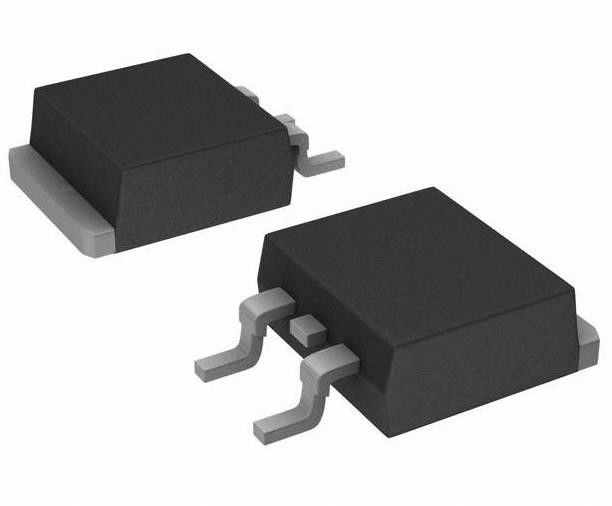

SBRB2545CTT4G Diode Array 1 Pair Common Cathode 45 V 15A Surface Mount TO-263-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SBRB2545CTT4G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Common Cathode | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 45V | Current - Average Rectified (Io) (per Diode): | 15A |
| Voltage - Forward (Vf) (Max) @ If: | 620 MV @ 15 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 200 µA @ 45 V | Operating Temperature - Junction: | -65°C ~ 175°C |
Product Description
SBRB2545CTT4G Diode Array 1 Pair Common Cathode 45 V 15A Surface Mount TO-263-3
Specifications of SBRB2545CTT4G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101, SWITCHMODE™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK |
| Base Product Number | SBRB2545 |
Features of SBRB2545CTT4G
• Center−Tap Configuration
• Guardring for Stress Protection
• Low Forward Voltage
• 175°C Operating Junction Temperature
• Epoxy Meets UL 94 V−0 @ 0.125 in
• Short Heat Sink Tab Manufactured − Not Sheared
• Similar in Size to the Industry Standard TO−220 Package
• AEC−Q101 Qualified and PPAP Capable
• SBRB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• All Packages are Pb−Free*
Applications of SBRB2545CTT4G
The D2PAK Power Rectifier is a state −of−the−art device that employs the Schottky Barrier principle with a platinum barrier metal.
Environmental & Export Classifications of SBRB2545CTT4G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
