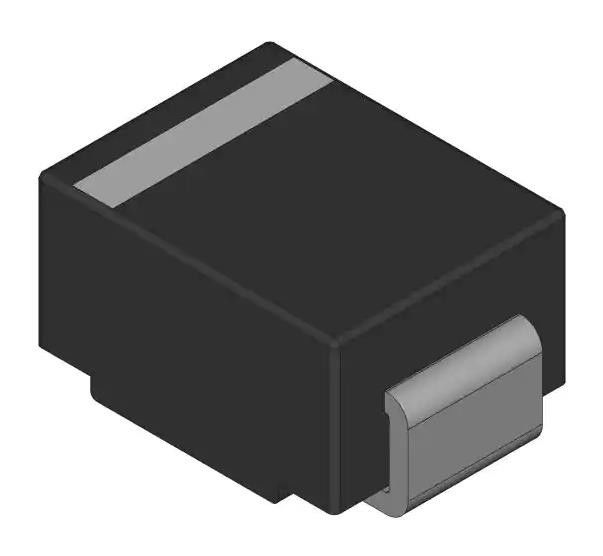

MURS140T3G Electronic Components Diode 400 V 1A Surface Mount SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MURS140T3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 400 V | Current - Average Rectified (Io): | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1.25 V @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 75 Ns | Current - Reverse Leakage @ Vr: | 5 µA @ 400 V |
| Mounting Type: | Surface Mount | Operating Temperature - Junction: | -65°C ~ 175°C |
Product Description
MURS140T3G Electronic Components Diode 400 V 1A Surface Mount SMB
Specifications of MURS140T3G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MURS140 |
Features of MURS140T3G
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• High Temperature Glass Passivated Junction
• Low Forward Voltage Drop (0.71 to 1.05 V Max @ 1.0 A, TJ = 150°C)
• NRVUS and SURS8 Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Applications of MURS140T3G
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
Environmental & Export Classifications of MURS140T3G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
