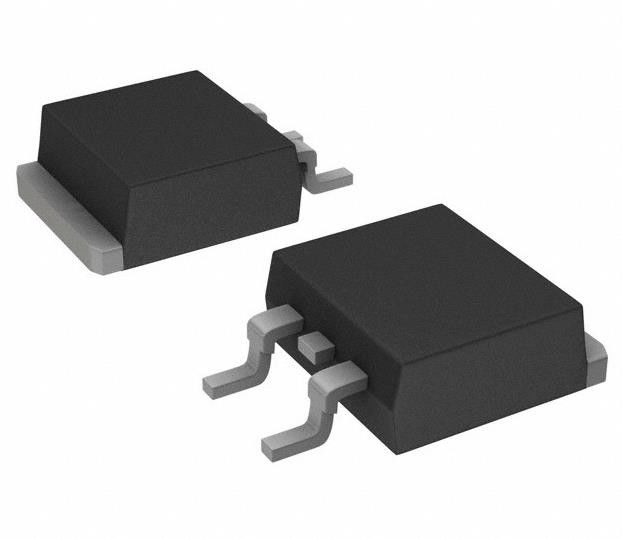

FDB110N15A N-Channel 150 V 92A (Tc) 234W (Tc) Surface Mount D²PAK (TO-263)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDB110N15A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 150 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 92A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Rds On (Max) @ Id, Vgs: | 11mOhm @ 92A, 10V | Vgs(th) (Max) @ Id: | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 61 NC @ 10 V | Vgs (Max): | ±20V |
Product Description
FDB110N15A N-Channel 150 V 92A (Tc) 234W (Tc) Surface Mount D²PAK (TO-263)
Specifications of FDB110N15A
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 92A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 92A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 61 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4510 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 234W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Base Product Number | FDB110 |
Features of FDB110N15A
• RDS(on) = 9.25 mΩ (Typ.) @ V GS = 10 V, ID = 92 A
• Fast Switching Speed
• Low Gate Charge
• High Performance Trench Technology for Extremely Low RDS(on)
• High Power and Current Handling Capability
• RoHS Compliant
Applications of FDB110N15A
• Synchronous Rectification for ATX / Server / Telecom PSU
• Battery Protection Circuit
• Motor drives and Uninterruptible Power Supplies
• Micro Solar Inverter
Environmental & Export Classifications of FDB110N15A
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
