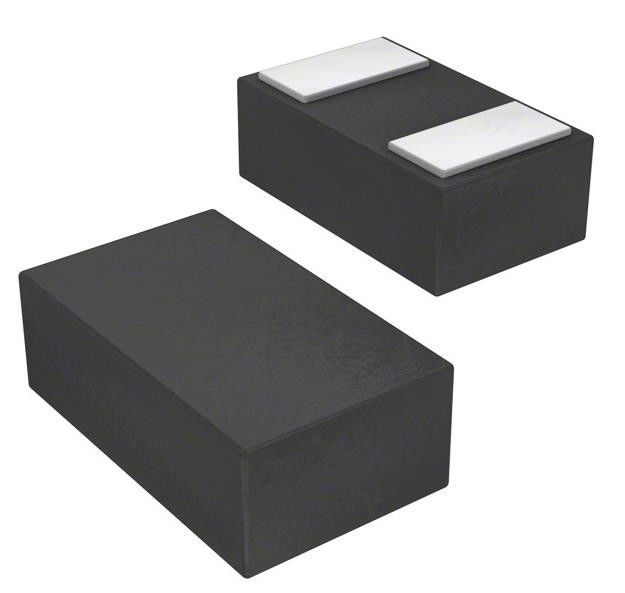

ESD8472MUT3G 20V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ESD8472MUT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Bidirectional Channels: | 1 | Voltage - Reverse Standoff (Typ): | 5.3V (Max) |
|---|---|---|---|
| Voltage - Breakdown (Min): | 7V | Voltage - Clamping (Max) @ Ipp: | 20V |
| Current - Peak Pulse (10/1000µs): | 3A (8/20µs) | Applications: | RF Antenna |
| Capacitance @ Frequency: | 0.2pF @ 1MHz | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
ESD8472MUT3G 20V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN
Specifications of ESD8472MUT3G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5.3V (Max) |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | RF Antenna |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 2-X3DFN (0.6x0.3) (0201) |
| Base Product Number | ESD8472 |
Features of ESD8472MUT3G
• Industry Leading Capacitance Linearity Over Voltage
• Ultra−Low Capacitance: 0.2 pF
• Insertion Loss: 0.030 dBm
• Small Footprint: 0.62 mm x 0.32 mm
• Stand−off Voltage: 5.3 V
• Low Leakage: < 1 nA
• Low Dynamic Resistance: < 1
• 1000 ESD IEC61000−4−2 Strikes ±8 kV Contact / Air Discharged
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
Applications of ESD8472MUT3G
• RF Signal ESD Protection
• RF Switching, PA, and Antenna ESD Protection
• Near Field Communications
• USB 2.0, USB 3.0
