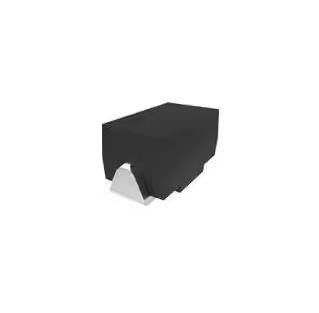

ES1M TP Electronic Components Diode 1000 V 1A Surface Mount DO-214AC (HSMA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ES1M TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 1000 V | Current - Average Rectified (Io): | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1.7 V @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 100 Ns | Current - Reverse Leakage @ Vr: | 5 µA @ 1000 V |
| Capacitance @ Vr, F: | 45pF @ 4V, 1MHz | Operating Temperature - Junction: | -50°C ~ 150°C |
Product Description
ES1M TP Electronic Components Diode 1000 V 1A Surface Mount DO-214AC (HSMA)
Specifications of ES1M TP
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Capacitance @ Vr, F | 45pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (HSMA) |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Base Product Number | ES1M |
Features of ES1M TP
* Halogen free available upon request by adding suffix "-HF"
* Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information)
* Epoxy meets UL 94 V-0 flammability rating
* Moisture Sensitivity Level 1
* High Temp Soldering: 260qC for 10 Seconds At Terminals
* Superfast Recovery Times For High Efficiency
Applications of ES1M TP
* Operating Temperature: -50qC to +150qC
* Storage Temperature: -50qC to +150qC
* Maximum Thermal Resistance; 15qC/W Junction To Lead
Environmental & Export Classifications of ES1M TP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
