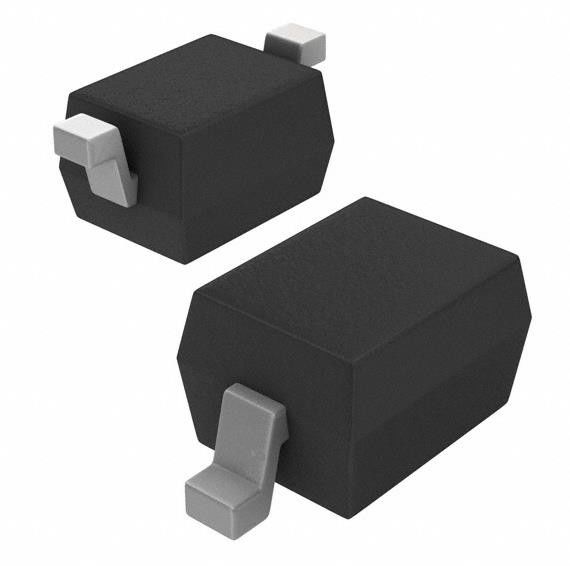

BZT52C4V7S-7 Zener Diode 4.7 V 200 mW ±6% Surface Mount SOD-323
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BZT52C4V7S-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 4.7 V | Tolerance: | ±6% |
|---|---|---|---|
| Power - Max: | 200 MW | Impedance (Max) (Zzt): | 80 Ohms |
| Current - Reverse Leakage @ Vr: | 3 µA @ 2 V | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 10 MA |
| Operating Temperature: | -65°C ~ 150°C | Package / Case: | SC-76, SOD-323 |
Product Description
BZT52C4V7S-7 Zener Diode 4.7 V 200 mW ±6% Surface Mount SOD-323
Specifications of BZT52C4V7S-7
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Voltage - Zener (Nom) (Vz) | 4.7 V |
| Tolerance | ±6% |
| Power - Max | 200 mW |
| Impedance (Max) (Zzt) | 80 Ohms |
| Current - Reverse Leakage @ Vr | 3 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | BZT52 |
Features of BZT52C4V7S-7
* Planar Die Construction
* Small Surface Mount Package
* Ideally Suited for Automated Assembly Processes
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
* Qualified to AEC-Q101 Standards for High Reliability
Applications of BZT52C4V7S-7
* Case: SOD323
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020
* Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.0049 grams (Approximate)
Environmental & Export Classifications of BZT52C4V7S-7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
