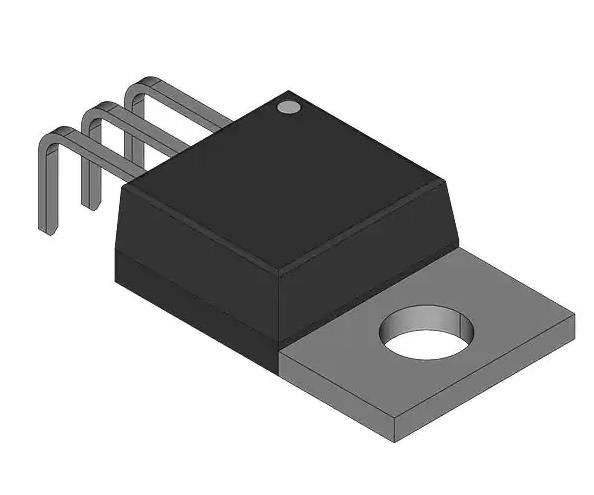

BTA208-600E TRIAC Logic - Sensitive Gate 600 V 8 A Through Hole TO-220AB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BTA208-600E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Triac Type: | Logic - Sensitive Gate | Voltage - Off State: | 600 V |
|---|---|---|---|
| Current - On State (It (RMS)) (Max): | 8:00 AM | Voltage - Gate Trigger (Vgt) (Max): | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 65A, 72A | Current - Gate Trigger (Igt) (Max): | 10 MA |
| Current - Hold (Ih) (Max): | 25 MA | Configuration: | Single |
Product Description
BTA208-600E TRIAC Logic - Sensitive Gate 600 V 8 A Through Hole TO-220AB
Specifications of BTA208-600E
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Thyristors | |
| TRIACs | |
| Mfr | N-X-P USA Inc. |
| Series | - |
| Package | Bulk |
| Triac Type | Logic - Sensitive Gate |
| Voltage - Off State | 600 V |
| Current - On State (It (RMS)) (Max) | 8:00 AM |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 65A, 72A |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Hold (Ih) (Max) | 25 mA |
| Configuration | Single |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
Features of BTA208-600E
• 3Q technology for improved noise immunity
• Direct interfacing with low power drivers and logic ICs
• High commutation capability
• High voltage capability
• Planar passivated for voltage ruggedness and reliability
• Sensitive gate for easy logic level triggering
• Triggering in three quadrants only
Applications of BTA208-600E
• Electronic thermostats
• General purpose motor controls
Environmental & Export Classifications of BTA208-600E
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8541.30.0080 |
