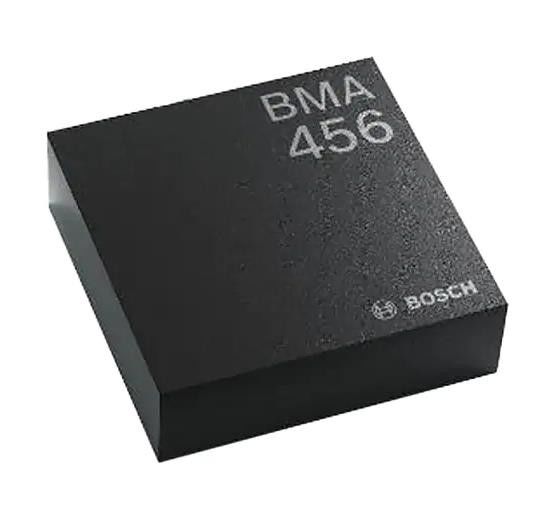

BMA456 Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 5.06Hz ~ 684Hz 12-LGA (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BMA456 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Adjustable Bandwidth, Selectable Low Pass Filter, Temperature Sensor | Type: | Digital |
|---|---|---|---|
| Axis: | X, Y, Z | Acceleration Range: | ±2g, 4g, 8g, 16g |
| Bandwidth: | 5.06Hz ~ 684Hz | Output Type: | I²C, SPI |
| Voltage - Supply: | 1.62V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
BMA456 Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 5.06Hz ~ 684Hz 12-LGA (2x2)
Specifications of BMA456
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Motion Sensors | |
| Accelerometers | |
| Mfr | Bosch Sensortec |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g, 16g |
| Sensitivity (mV/g) | - |
| Bandwidth | 5.06Hz ~ 684Hz |
| Output Type | I²C, SPI |
| Voltage - Supply | 1.62V ~ 3.6V |
| Features | Adjustable Bandwidth, Selectable Low Pass Filter, Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFLGA |
| Supplier Device Package | 12-LGA (2x2) |
Features of BMA456
• Small package size LGA package (12 pins), footprint 2mm x 2mm, height 0.65 mm
• Digital interface SPI (4-wire, 3-wire), I²C, 2 interrupt pins VDDIO voltage range: 1.2V to 3.6V
• Programmable functionality Acceleration ranges ±2g/±4g/±8g/±16g Low-pass filter bandwidths 684Hz - <8Hz up to a max. output data read out of 1.6 kHz
• On-chip FIFO Integrated FIFO on sensor with 1 kb
• On-chip interrupt features See „Application note – Wearable feature set” or „Application note – Hearable feature set”
• Ultra-low power Low current consumption of data acquisition and all integrated features
• (Secondary) Auxiliary Interface Hub for ext. Magnetometer and data synchronization
• RoHS compliant, halogen-free
Applications of BMA456
• Applications with height constrains
• Plug ’n’ Play Step-Counter solution with watermark functionality
• Fitness applications / Activity Tracking
• Power management for wearable/hearable applications
• Display on/off and profile switching
• User interface without hardware buttons
• E-compass tilt compensation and data synchronization
• High performance angle measurements
Environmental & Export Classifications of BMA456
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
