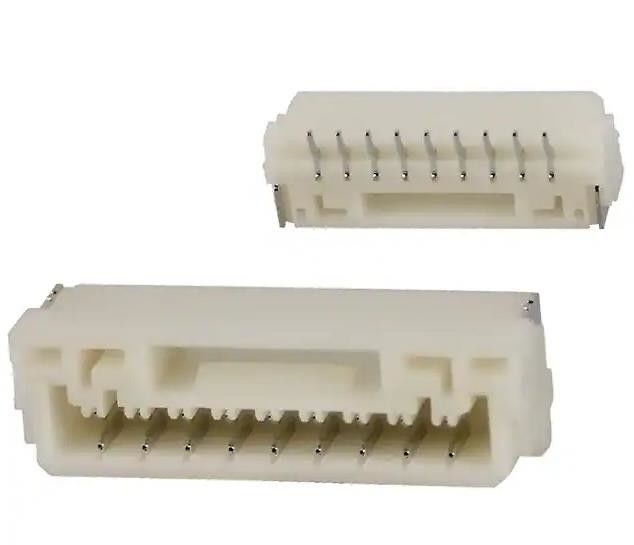

BM09B-GHS-TBT Connector Header Surface Mount 9 position 0.049" (1.25mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BM09B-GHS-TBT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Shrouding: | Shrouded - 4 Wall | Mounting Type: | Surface Mount |
|---|---|---|---|
| Termination: | Solder | Insulation Height: | 0.159" (4.05mm) |
| Contact Shape: | Rectangular | Contact Material: | Phosphor Bronze |
| Operating Temperature: | -25°C ~ 85°C | Material Flammability Rating: | UL94 V-0 |
Product Description
BM09B-GHS-TBT Connector Header Surface Mount 9 position 0.049" (1.25mm)
Specifications of BM09B-GHS-TBT
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | JST Sales America Inc. |
| Series | GH |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Connector Type | Header |
| Contact Type | Outer Shroud Contact |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.159" (4.05mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
| Mated Stacking Heights | 7.3mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | BM09B-GH |
Features of BM09B-GHS-TBT
● Secure locking structure
● Contact lock structure
● Prevention of contact deformation
● Clear engagement click sounds
Applications of BM09B-GHS-TBT
• Current rating: 1.0 A AC/DC (AWG #26)
• Voltage rating: 50 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 30 mΩ max. After environmental tests/ 50 mΩ max.
• Insulation resistance: 100 MΩ min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: Conductor size/ AWG #30 to #26 Insulation O.D./ 0.76 to 1.0 mm
Environmental & Export Classifications of BM09B-GHS-TBT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
