BC857BS Bipolar (BJT) Transistor Array 2 PNP (Dual) 45V 100mA 200MHz 300mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BC857BS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | 2 PNP (Dual) | Current - Collector (Ic) (Max): | 100mA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 45V | Vce Saturation (Max) @ Ib, Ic: | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max): | 15nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 220 @ 2mA, 5V |
| Power - Max: | 300mW | Frequency - Transition: | 200MHz |
Product Description
BC857BS Bipolar (BJT) Transistor Array 2 PNP (Dual) 45V 100mA 200MHz 300mW
Specifications of BC857BS
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Bipolar Transistor Arrays | |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | 2 PNP (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 220 @ 2mA, 5V |
| Power - Max | 300mW |
| Frequency - Transition | 200MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

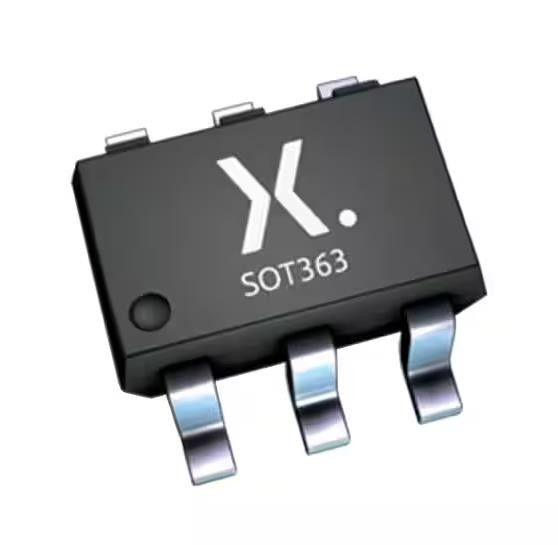

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | BC857 |
Features of BC857BS
● Epoxy meets UL-94 V-0 flammability rating
● Surface mount package ideally Suited for Automatic Insertion
● PNP
Applications of BC857BS
● Package: SOT-363
● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
● Marking: 3F
Environmental & Export Classifications of BC857BS
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
