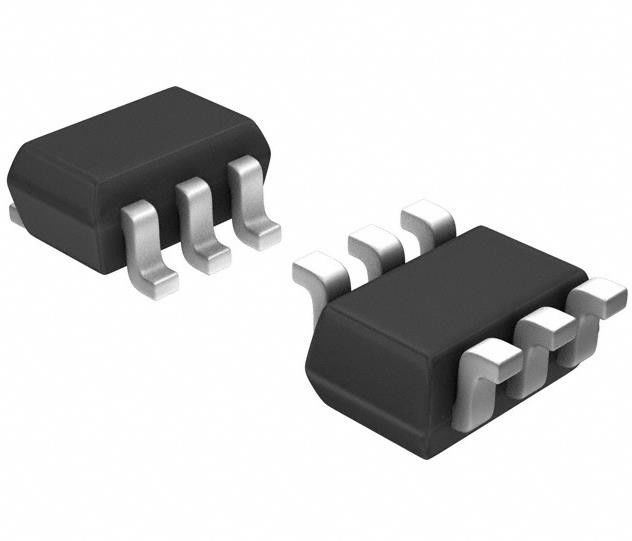

2N7002DWQ-13-F Mosfet Array 60V 230mA (Ta) 310mW (Ta) Surface Mount SOT-363
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2450AT18B100E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | MOSFET (Metal Oxide) | Configuration: | 2 N-Channel (Dual) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 60V | Current - Continuous Drain (Id) @ 25°C: | 230mA (Ta) |
| Rds On (Max) @ Id, Vgs: | 7.5Ohm @ 50mA, 5V | Vgs(th) (Max) @ Id: | 2V @ 250µA |
Product Description
2N7002DWQ-13-F Mosfet Array 60V 230mA (Ta) 310mW (Ta) Surface Mount SOT-363
Specifications of 2N7002DWQ-13-F
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Mfr | Diodes Incorporated |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 230mA (Ta) |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 50mA, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Power - Max | 310mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | 2N7002 |
Features of 2N7002DWQ-13-F
• Dual N-Channel MOSFET
• Low On-Resistance
• Low Gate Threshold Voltage
• Low Input Capacitance
• Fast Switching Speed
• Low Input/Output Leakage
• Ultra-Small Surface Mount Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Applications of 2N7002DWQ-13-F
• Motor Control
• Power Management Functions
Environmental & Export Classifications of 2N7002DWQ-13-F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
