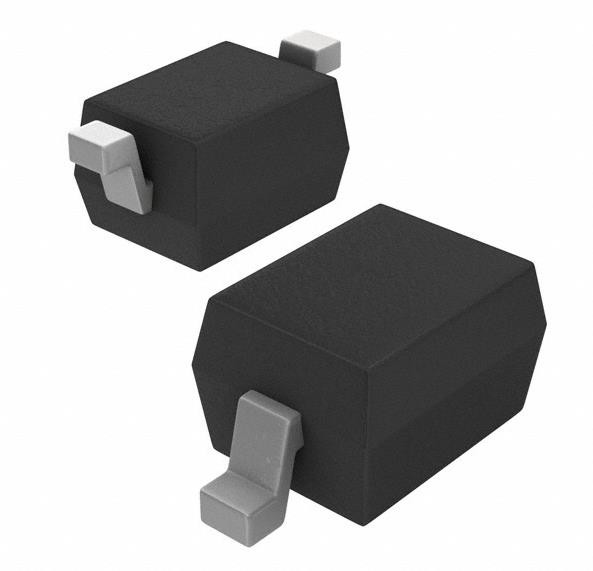

1N4148WS-HE3-08 Diode 75 V 150mA Surface Mount SOD-323
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 1N4148WS-HE3-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 75 V | Current - Average Rectified (Io): | 150mA |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1.2 V @ 100 MA | Speed: | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr): | 4 Ns | Current - Reverse Leakage @ Vr: | 100 µA @ 100 V |
Product Description
1N4148WS-HE3-08 Diode 75 V 150mA Surface Mount SOD-323
Specifications of 1N4148WS-HE3-08
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | 1N4148 |
Features of 1N4148WS-HE3-08
• Silicon epitaxial planar diode
• Fast switching diodes
• AEC-Q101 qualified available
• Base P/N-E3 - RoHS-compliant, commercial grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
Applications of 1N4148WS-HE3-08
Case: SOD-323
Weight: approx. 4.3 mg
Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box
Environmental & Export Classifications of 1N4148WS-HE3-08
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
