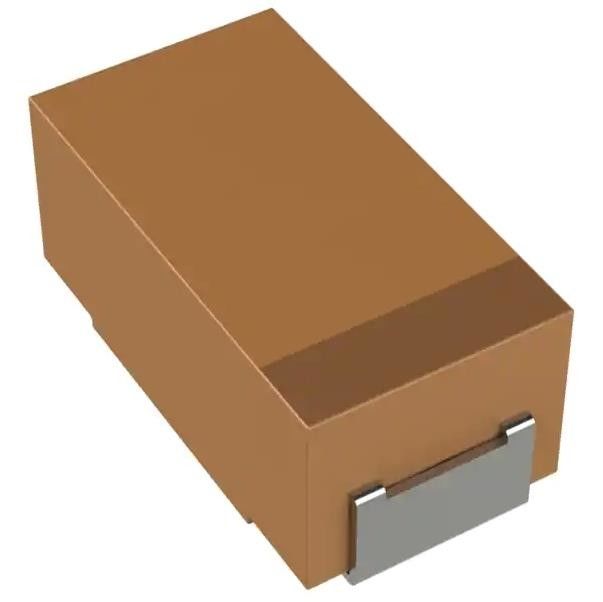

TPSC226K016T0375 22 µF Molded Tantalum Capacitors 16 V 2312 375mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPSC226K016T0375 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Capacitance: | 22 µF | Tolerance: | ±10% |
|---|---|---|---|
| Type: | Molded | Voltage - Rated: | 16 V |
| Operating Temperature: | -55°C ~ 125°C | Lifetime @ Temp.: | 2000 Hrs @ 125°C |
Product Description
TPSC226K016T0375 22 µF Molded Tantalum Capacitors 16 V 2312 375mOhm
Specifications of TPSC226K016T0375
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | KYOCERA AVX |
| Series | TPS |
| Package | Tape & Reel (TR) |
| Capacitance | 22 µF |
| Tolerance | ±10% |
| Voltage - Rated | 16 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 375mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Lead Spacing | - |
| Manufacturer Size Code | C |
| Ratings | AEC-Q200 |
| Features | Automotive |
| Failure Rate | - |
Features of TPSC226K016T0375
• Reference Voltage Tolerance at 25°C
– 0.5% (B Grade)
– 1% (A Grade)
• Minimum Typical Output Voltage: 2.495 V
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to +125°C (Q Temp)
• Maximum Temperature Drift
– 10 mV (C Temp)
– 17 mV (I Temp)
– 27 mV (Q Temp)
• 0.3-Ω Typical Output Impedance
• Sink-Current Capability
– Imin = 1 mA (max)
– IKA = 15 mA (max)
• Reference Input Current IREF: 0.4 μA (max)
• Deviation of Reference Input Current over Temperature, II(dev): 0.3 μA (max)
Environmental & Export Classifications of TPSC226K016T0375
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8532.21.0050 |
