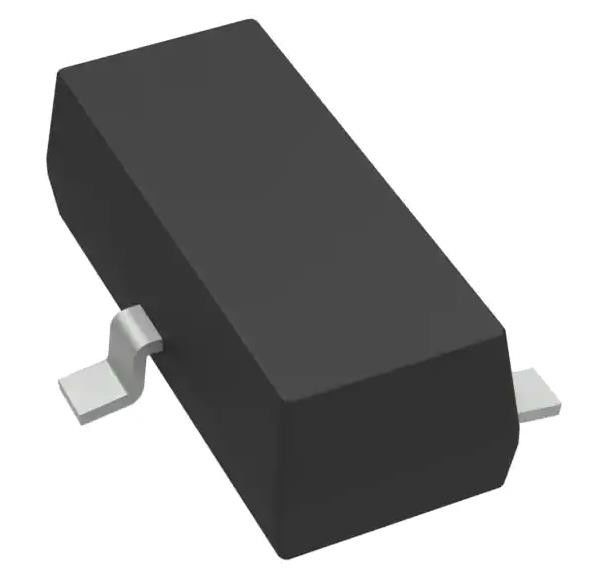

TLV431BQDBZR Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±1% 15 mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV431BQDBZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Output Type: | Adjustable |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 2.495V | Voltage - Output (Max): | 36 V |
| Current - Output: | 15 MA | Tolerance: | ±1% |
Product Description
TLV431BQDBZR Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±1% 15 mA
Specifications of TLV431BQDBZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.495V |
| Voltage - Output (Max) | 36 V |
| Current - Output | 15 mA |
| Tolerance | ±1% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Supply | - |
| Current - Cathode | 1 mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TL431 |
Features of TLV431BQDBZR
• Reference Voltage Tolerance at 25°C
– 0.5% (B Grade)
– 1% (A Grade)
• Minimum Typical Output Voltage: 2.495 V
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to +125°C (Q Temp)
• Maximum Temperature Drift
– 10 mV (C Temp)
– 17 mV (I Temp)
– 27 mV (Q Temp)
• 0.3-Ω Typical Output Impedance
• Sink-Current Capability
– Imin = 1 mA (max)
– IKA = 15 mA (max)
• Reference Input Current IREF: 0.4 μA (max)
• Deviation of Reference Input Current over Temperature, II(dev): 0.3 μA (max)
Applications of TLV431BQDBZR
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPS
• Zener Diode Replacement
• Voltage Monitoring
• Precision Constant Current Sink/Source
• Comparator with Integrated Reference
Environmental & Export Classifications of TLV431BQDBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
