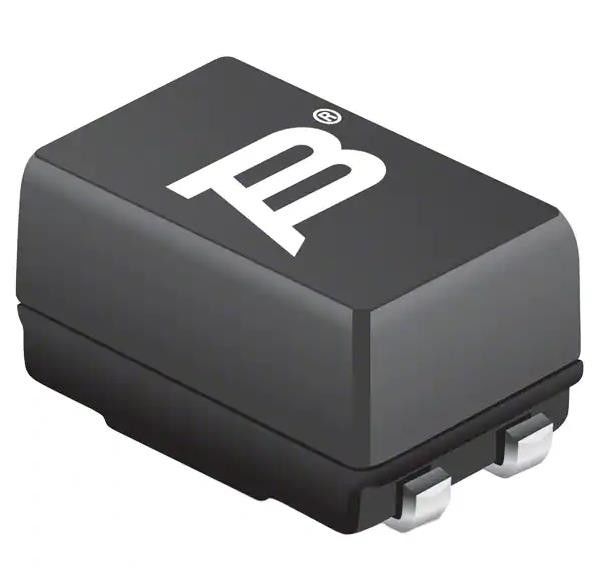

SRF0905-251Y 250 µH 100 kHz 2 Line Common Mode Choke 600 Ohms 3 MHz 1.2A 130mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SRF0905-251Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Filter Type: | Signal Line | Number Of Lines: | 2 |
|---|---|---|---|
| Impedance @ Frequency: | 600 Ohms @ 3 MHz | Inductance @ Frequency: | 250 µH @ 100 KHz |
| Current Rating (Max): | 1.2A | DC Resistance (DCR) (Max): | 130mOhm |
| Voltage Rating - DC: | 80V | Operating Temperature: | -40°C ~ 105°C |
Product Description
SRF0905-251Y 250 µH 100 kHz 2 Line Common Mode Choke 600 Ohms 3 MHz 1.2A 130mOhm
Specifications of SRF0905-251Y
| TYPE | DESCRIPTION |
| Category | Filters |
| Common Mode Chokes | |
| Mfr | Bourns Inc. |
| Series | SRF0905 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 600 Ohms @ 3 MHz |
| Inductance @ Frequency | 250 µH @ 100 kHz |
| Current Rating (Max) | 1.2A |
| DC Resistance (DCR) (Max) | 130mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.362" L x 0.236" W (9.20mm x 6.00mm) |
| Height (Max) | 0.209" (5.30mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | SRF0905 |
Features of SRF0905-251Y
* Current rating up to 1.6 A
* Inductance range: 10 to 6500 μH
* Frequency range to 300 MHz
* RoHS compliant*
Decriptions of RC0805FR-074R32L
* EMI suppression
Environmental & Export Classifications of SRF0905-251Y
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
