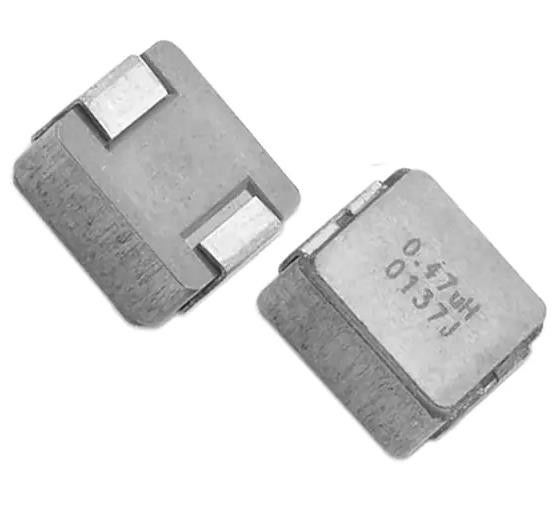

IHLP2525CZERR68M01 680 nH Shielded Molded Inductor 15.5 A 5.5mOhm Max
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IHLP2525CZERR68M01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Inductance: | 680 NH | Tolerance: | ±20% |
|---|---|---|---|
| Current Rating (Amps): | 15.5 A | Current - Saturation (Isat): | 25A |
| Shielding: | Shielded | DC Resistance (DCR): | 5.5mOhm Max |
| Operating Temperature: | -55°C ~ 125°C | Inductance Frequency - Test: | 100 KHz |
Product Description
IHLP2525CZERR68M01 680 nH Shielded Molded Inductor 15.5 A 5.5mOhm Max
Specifications of IHLP2525CZERR68M01
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Vishay Dale |
| Series | IHLP-2525CZ-01 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Molded |
| Material - Core | - |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15.5 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Features of IHLP2525CZERR68M01
• Lowest height (3.0 mm) in this package footprint
• Shielded construction
• Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
Decriptions of IHLP2525CZERR68M01
• PDA / notebook / desktop / server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for field programmable gate array (FPGA)
Environmental & Export Classifications of IHLP2525CZERR68M01
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
