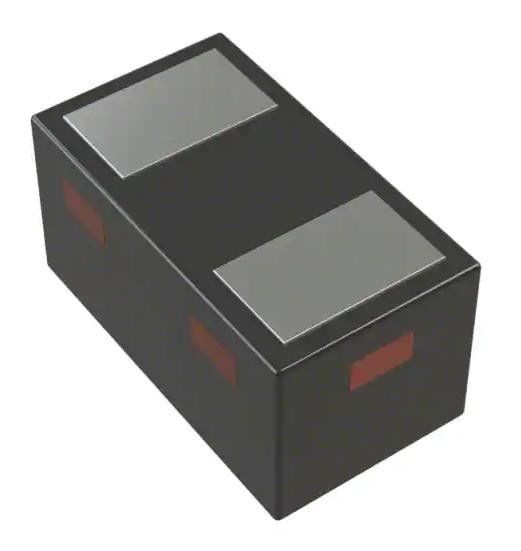

CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CDBZC0130L-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | Schottky | Voltage - DC Reverse (Vr) (Max): | 30 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 100mA | Voltage - Forward (Vf) (Max) @ If: | 370 MV @ 10 MA |
| Speed: | Small Signal =< 200mA (Io), Any Speed | Current - Reverse Leakage @ Vr: | 7 µA @ 10 V |
| Operating Temperature - Junction: | -40°C ~ 125°C | Capacitance @ Vr, F: | - |
Product Description
CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603
Specifications of CDBZC0130L-HF
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Comchip Technology |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 370 mV @ 10 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Current - Reverse Leakage @ Vr | 7 µA @ 10 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201/DFN0603 |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Base Product Number | CDBZC0130 |
Features of CDBZC0130L-HF
- Low forward voltage.
- Ultra small mold type.
Descriptions of CDBZC0130L-HF
- Case: 0201/DFN0603 package, molded plastic.
- Terminals: Gold plated, solderable per MIL-STD-750, method 2026.
- Mounting position: Any
- Polarity: Color band denotes cathode end.
- Weight: 0.0004 grams(approx.).
Environmental & Export Classifications of CDBZC0130L-HF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
